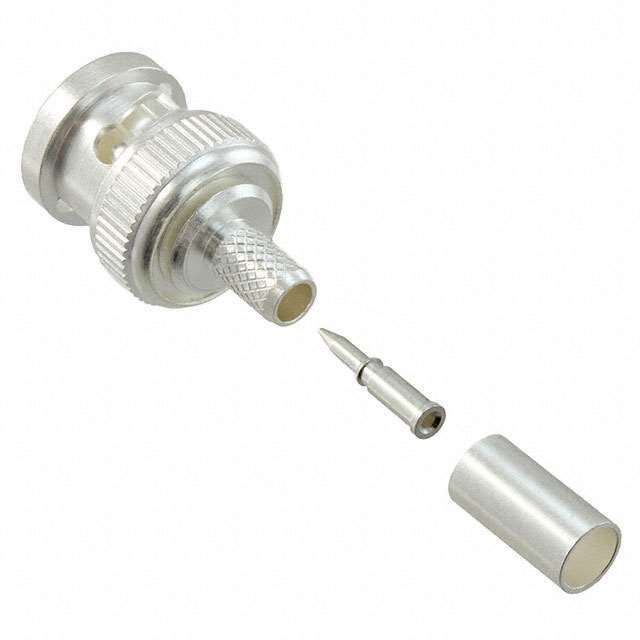

| Part Number | 1-1337429-0 | 1-1337469-0 | 1-1337629-0 | 1-1337439-0 | 1-1337499-0 | 1-1337479-0 | 1-1337420-0 | 1-1337421-0 | 1-1337422-0 | 1-1337426-0 | 1-1337427-0 | 1-1337428-0 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Obsolete | Obsolete | Obsolete | Active | Obsolete | Obsolete | Last Time Buy | Obsolete | Last Time Buy |
| Connector Style | BNC | TNC | N Type | BNC | BNC | SMB | BNC | BNC | BNC | BNC | BNC | BNC |
| Connector Type | Plug, Male Pin | Jack, Female Socket | Plug, Male Pin | Plug, Male Pin | Jack, Female Socket | Jack, Male Pin | Plug, Male Pin | Plug, Male Pin | Plug, Male Pin | Plug, Male Pin | Plug, Male Pin | Plug, Male Pin |
| Contact Termination | Solder | Solder Cup | Solder | Solder | Solder Cup | Solder Cup | Solder | Solder | Solder | Crimp | Solder | Solder |
| Shield Termination | Crimp | Solder Tag | Crimp | Crimp | Solder | Solder | Clamp | Clamp | Clamp | Crimp | Crimp | Crimp |
| Impedance | 75Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 75Ohm | 50Ohm | 50Ohm | 75Ohm |
| Mounting Type | Free Hanging (In-Line) | Panel Mount | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle | Panel Mount | Panel Mount | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | - | Bulkhead - Rear Side Nut | - | - | Flange | Bulkhead - Front Side Nut | - | - | - | - | - | - |
| Cable Group | RG-59B, 62A, 140, 210 | - | RG-8A, 213 | RG-174A, 188A, 316 | - | - | RG-141A, 58C, Belden 9907 | RG-58C, 141A, Belden 9907 | RG-59B, 62A, 140, 210 | RG-58C, 141A, Belden 9907 | RG-58C, 141A, Belden 9907 | RG-59B, 62A, 140, 210 |
| Fastening Type | Bayonet Lock | Threaded | Threaded | Bayonet Lock | Bayonet Lock | Snap-On | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock |
| Frequency - Max | 2 GHz | 11 GHz | 11 GHz | 4 GHz | 4 GHz | 4 GHz | 4 GHz | 4 GHz | 2 GHz | 4 GHz | 4 GHz | 2 GHz |
| Number of Ports | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Features | - | - | - | - | Extended Insulation | - | - | - | - | - | - | - |
| Housing Color | Silver | Silver | Silver | Silver | Silver | Gold | Silver | Silver | Silver | Silver | Silver | Silver |
| Ingress Protection | - | - | - | - | - | - | - | - | - | - | - | - |
| Center Contact Material | Brass | Brass | Brass | Brass | Brass | Brass | Brass | Brass | Brass | Brass | Brass | Brass |
