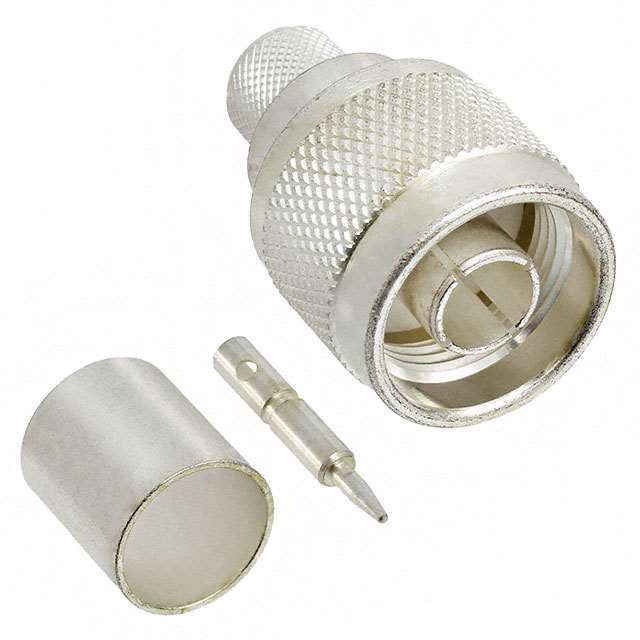

| Part Number | 1-1337415-0 | 1-1337445-0 | 1-1337418-0 | 1-1337417-0 | 1-1337416-0 | 1-1337435-0 | 1-1337414-0 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Obsolete | Active | Active | Obsolete | Active |
| Connector Style | N Type | BNC | N Type | N Type | N Type | BNC | N Type |
| Connector Type | Plug, Male Pin | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket | Plug, Male Pin | Jack, Female Socket | Jack, Female Socket |
| Contact Termination | Solder | Solder | Solder Cup | Solder Cup | Solder | Solder | Solder |
| Shield Termination | Crimp | Solder | Solder | Solder Tag | Crimp | Crimp | Crimp |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 75Ohm | 50Ohm |
| Mounting Type | Free Hanging (In-Line) | Through Hole | Panel Mount | Panel Mount | Free Hanging (In-Line) | Panel Mount | Free Hanging (In-Line) |
| Mounting Feature | - | - | Flange | Bulkhead - Rear Side Nut | - | Bulkhead - Front Side Nut | - |
| Cable Group | RG-9B, 214 | - | - | - | RG-58C, 141A, Belden 9907 | RG-59B, 62A, 140, 210 | RG-8A, 213 |
| Fastening Type | Threaded | Bayonet Lock | Threaded | Threaded | Threaded | Bayonet Lock | Threaded |
| Frequency - Max | 11 GHz | 4 GHz | 11 GHz | 11 GHz | 11 GHz | 2 GHz | 11 GHz |
| Number of Ports | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Features | - | - | - | - | - | - | - |
| Housing Color | Silver | Silver | Silver | Silver | Silver | Silver | Silver |
| Ingress Protection | - | - | - | - | - | - | - |
| Center Contact Material | Brass | Brass | Brass | Brass | Brass | Phosphor Bronze | Beryllium Copper |
