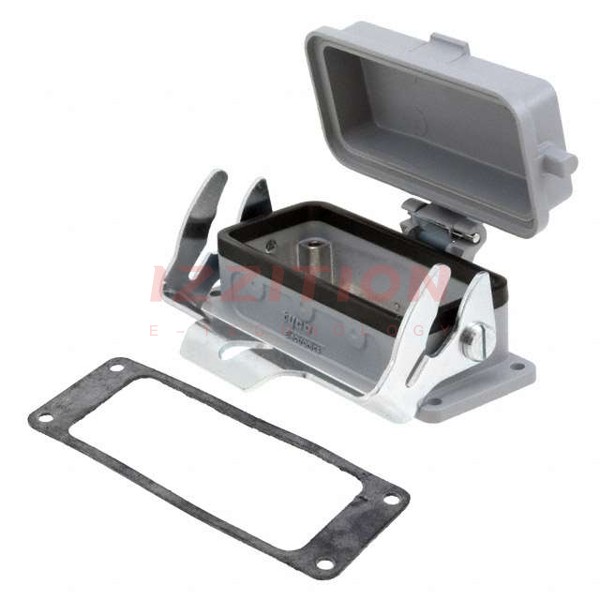

| Part Number | 1-1102305-2 | 1-1102305-6 | 1-1102105-2 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Obsolete | Active |
| Connector Type | Base - Panel Mount | Base - Panel Mount | Base - Panel Mount |
| Style | Bottom Entry | Bottom Entry | Bottom Entry |
| Size | 6 | 6 | 1 |
| Lock Location | Locking Clip (1) on Base Bottom | Locking Clip (2) on Hood | Locking Clip (1) on Base Bottom |
| Thread Size | - | - | - |
| Size / Dimension | 4.449" L x 1.713" W x 1.122" H (113.00mm x 43.50mm x 28.50mm) | 4.449" L x 1.713" W x 1.122" H (113.00mm x 43.50mm x 28.50mm) | 1.102" L x 1.575" W x 0.906" H (28.00mm x 40.00mm x 23.00mm) |
| Housing Color | Gray | Gray | Gray |
| Features | Cover | Cover | - |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast | Zinc, Die Cast |
| Housing Finish | Powder Coated | Powder Coated | Powder Coated |
| Operating Temperature | - | - | - |
