1-1102296-8
  • Share:

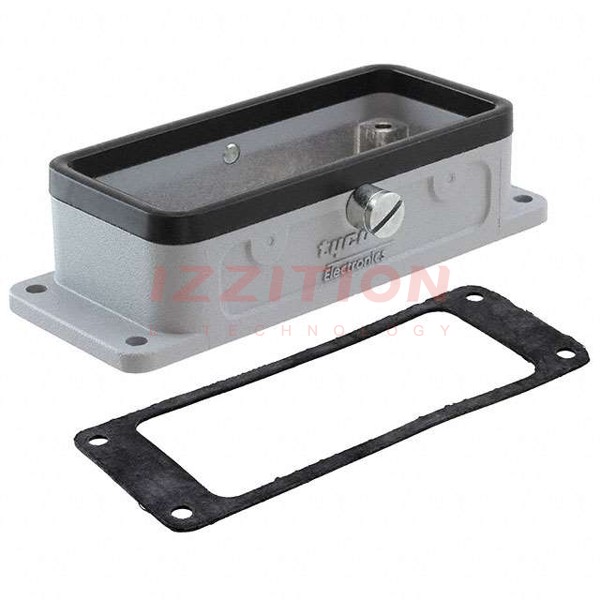

TE Connectivity AMP Connectors 1-1102296-8

Manufacturer No:
1-1102296-8
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
1-1102296-8 Datasheet
ECAD Model:
-
Description:
CONN BASE BOTTOM ENTRY SZ6
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Base - Panel Mount
Style:Bottom Entry
Size:6
Lock Location:Locking Clip (1) on Hood
Thread Size:-
Size / Dimension:4.449" L x 1.713" W x 1.122" H (113.00mm x 43.50mm x 28.50mm)
Housing Color:Gray
Features:-
Ingress Protection:IP65 - Dust Tight, Water Resistant
Housing Material:Aluminum Alloy, Die Cast
Housing Finish:-
Operating Temperature:-
0 Remaining View Similar

In Stock

$41.42
11

Please send RFQ , we will respond immediately.

Similar Products

Part Number 1-1102296-8 1-1102291-8   1-1102296-1
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active Active
Connector Type Base - Panel Mount Base - Panel Mount Base - Panel Mount
Style Bottom Entry Bottom Entry Bottom Entry
Size 6 8 6
Lock Location Locking Clip (1) on Hood Locking Clip (1) on Hood Locking Clip (2) on Base Bottom
Thread Size - - -
Size / Dimension 4.449" L x 1.713" W x 1.122" H (113.00mm x 43.50mm x 28.50mm) 5.512" L x 1.713" W x 1.122" H (140.00mm x 43.50mm x 28.50mm) 4.449" L x 1.713" W x 1.122" H (113.00mm x 43.50mm x 28.50mm)
Housing Color Gray Gray Gray
Features - - -
Ingress Protection IP65 - Dust Tight, Water Resistant IP65 - Dust Tight, Water Resistant IP65 - Dust Tight, Water Resistant
Housing Material Aluminum Alloy, Die Cast Aluminum Alloy, Die Cast Aluminum Alloy, Die Cast
Housing Finish - Powder Coated Powder Coated
Operating Temperature - - -
