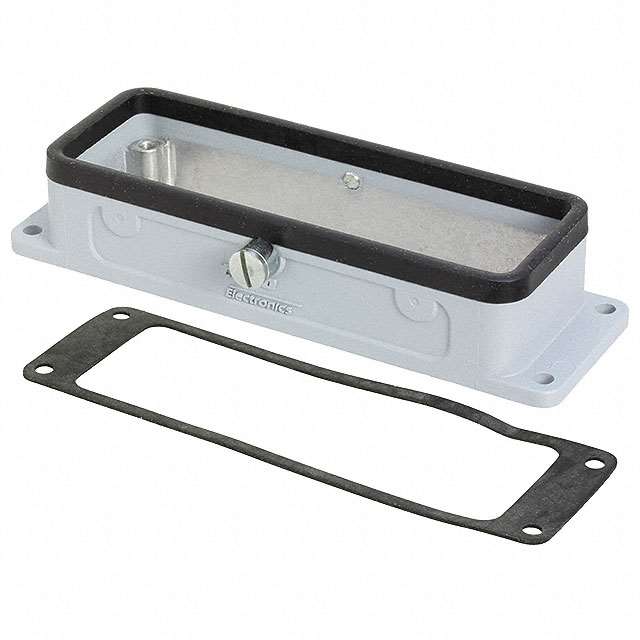

| Part Number | 1-1102291-8 | 1-1102296-8 | 1-1102291-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Connector Type | Base - Panel Mount | Base - Panel Mount | Base - Panel Mount |
| Style | Bottom Entry | Bottom Entry | Bottom Entry |
| Size | 8 | 6 | 8 |
| Lock Location | Locking Clip (1) on Hood | Locking Clip (1) on Hood | Locking Clip (2) on Base Bottom |
| Thread Size | - | - | - |
| Size / Dimension | 5.512" L x 1.713" W x 1.122" H (140.00mm x 43.50mm x 28.50mm) | 4.449" L x 1.713" W x 1.122" H (113.00mm x 43.50mm x 28.50mm) | 5.512" L x 1.713" W x 1.122" H (140.00mm x 43.50mm x 28.50mm) |
| Housing Color | Gray | Gray | Gray |
| Features | - | - | - |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast |
| Housing Finish | Powder Coated | - | Powder Coated |
| Operating Temperature | - | - | - |
