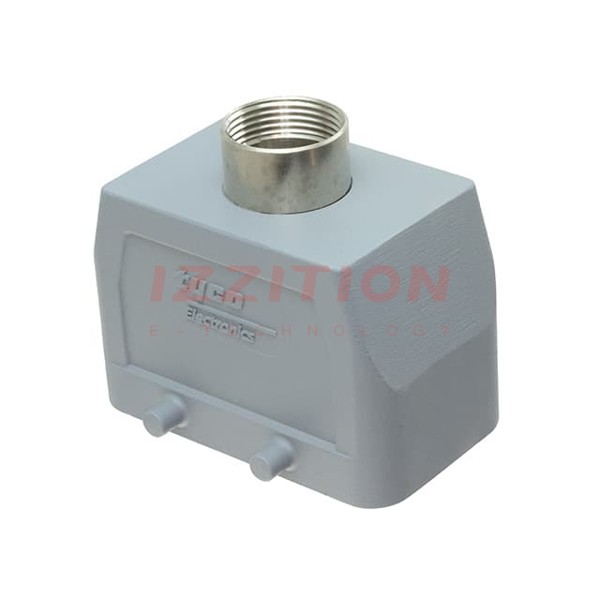

| Part Number | 1-1102266-6 | 1-1102267-6 | 1-1102261-6 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Active |
| Connector Type | Hood | Hood | Hood |
| Style | Top Entry | Top Entry | Side Entry |
| Size | 4 | 4 | 4 |
| Lock Location | Locking Clip (2) on Base Bottom | Locking Clip (2) on Base Bottom | Locking Clip (2) on Base Bottom |
| Thread Size | PG16 | PG16 | PG16 |
| Size / Dimension | 2.874" L x 1.693" W x 1.969" H (73.00mm x 43.00mm x 50.00mm) | 2.874" L x 1.693" W x 1.969" H (73.00mm x 43.00mm x 50.00mm) | 2.874" L x 1.693" W x 1.969" H (73.00mm x 43.00mm x 50.00mm) |
| Housing Color | Gray | Gray | Gray |
| Features | - | - | - |
| Ingress Protection | - | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast |
| Housing Finish | Powder Coated | Powder Coated | - |
| Operating Temperature | - | - | -40°C ~ 80°C |
