Please send RFQ , we will respond immediately.

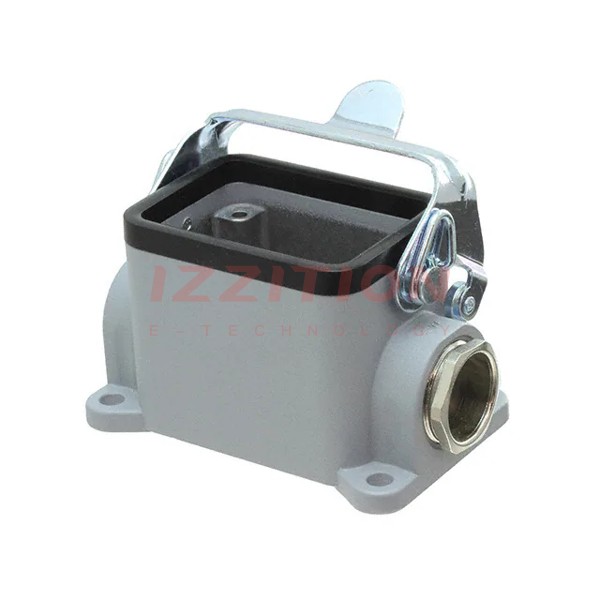

| Part Number | 1-1102248-2 | 1-1102244-2 | 1-1102246-2 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Obsolete |
| Connector Type | Base - Box Mount | Base - Panel Mount | Base - Panel Mount |
| Style | Side Entry | Bottom Entry | Bottom Entry |
| Size | 3 | 3 | 3 |
| Lock Location | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom |
| Thread Size | PG16 | - | - |
| Size / Dimension | 3.228" L x 2.047" W x 1.988" H (82.00mm x 52.00mm x 50.50mm) | 3.150" L x 1.713" W x 1.122" H (80.00mm x 43.50mm x 28.50mm) | 3.150" L x 1.693" W x 1.122" H (80.00mm x 43.00mm x 28.50mm) |
| Housing Color | Gray | Gray | Gray |
| Features | - | - | - |
| Ingress Protection | - | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast |
| Housing Finish | Powder Coated | Powder Coated | Powder Coated |
| Operating Temperature | - | - | - |
