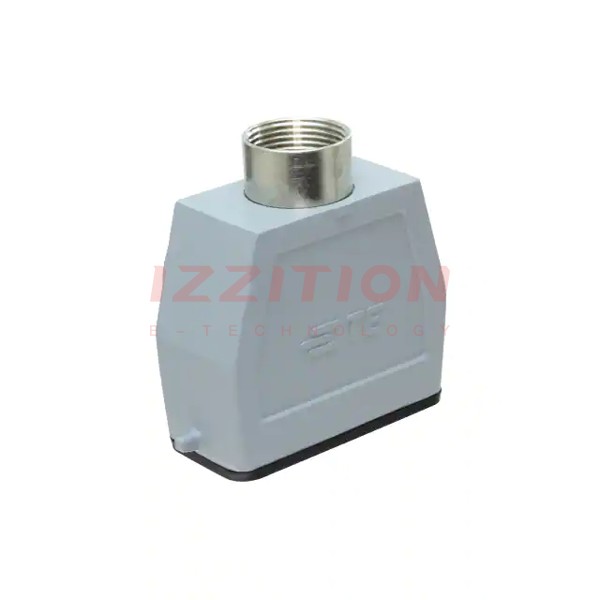

| Part Number | 1-1102119-7 | 1-1102115-7 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Connector Type | Hood | Hood |
| Style | Top Entry | Side Entry |
| Size | 2 | 2 |
| Lock Location | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom |
| Thread Size | PG16 | PG16 |
| Size / Dimension | 2.480" L x 1.142" W x 2.256" H (63.00mm x 29.00mm x 57.30mm) | 2.480" L x 1.142" W x 2.256" H (63.00mm x 29.00mm x 57.30mm) |
| Housing Color | Gray | Gray |
| Features | - | - |
| Ingress Protection | - | - |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast |
| Housing Finish | Powder Coated | Powder Coated |
| Operating Temperature | - | - |
