Please send RFQ , we will respond immediately.

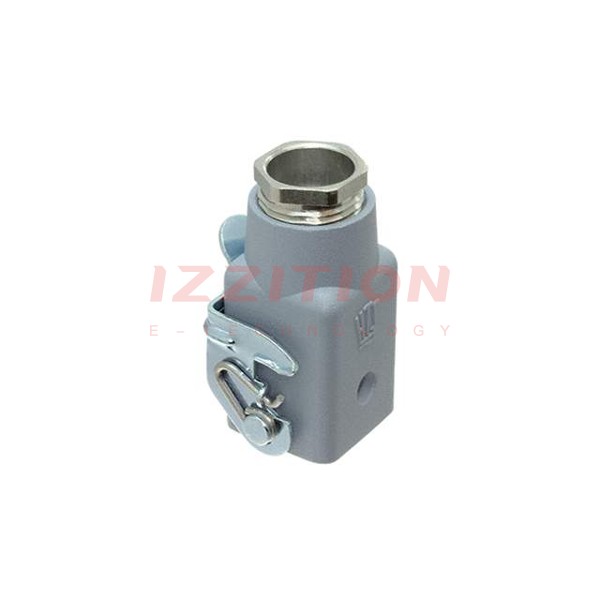

| Part Number | 1-1102111-2 | 1-1102112-2 | 1-1102121-2 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Active |
| Connector Type | Hood - Coupling | Hood - Coupling | Base - Panel Mount |
| Style | Bottom Entry | Bottom Entry | Bottom Entry |
| Size | 1 | 1 | 2 |
| Lock Location | Locking Clip (1) on Hood | Locking Clip (1) on Hood Top | Locking Clip (1) on Base Bottom |
| Thread Size | PG11 | PG11 | - |
| Size / Dimension | 0.945" L x 0.945" W x 1.811" H (24.00mm x 24.00mm x 46.00mm) | 0.945" L x 0.945" W x 1.811" H (24.00mm x 24.00mm x 46.00mm) | 3.189" L x 1.181" W x 1.102" H (81.00mm x 30.00mm x 28.00mm) |
| Housing Color | Gray | Gray | Gray |
| Features | Cable to Cable | Cable to Cable | - |
| Ingress Protection | - | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Housing Material | Zinc, Die Cast | Zinc, Die Cast | Aluminum, Die Cast |
| Housing Finish | Powder Coated | Powder Coated | Powder Coated |
| Operating Temperature | - | - | - |
