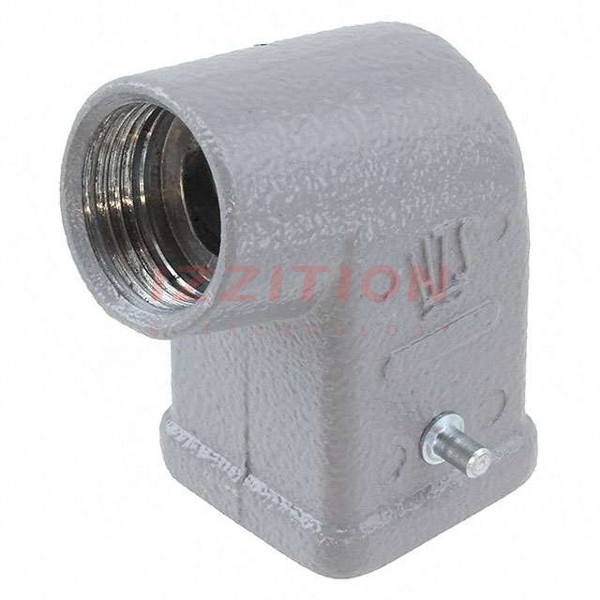

| Part Number | 1-1102103-7 | 1-1102100-7 | 1-1102101-7 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Connector Type | Hood - 90° | Hood | Hood |
| Style | Side Entry | Top Entry | Top Entry |
| Size | 1 | 1 | 1 |
| Lock Location | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom |
| Thread Size | PG11 | PG11 | PG11 |
| Size / Dimension | 1.043" L x 1.043" W x 1.929" H (26.50mm x 26.50mm x 49.00mm) | 1.043" L x 1.043" W x 2.047" H (26.50mm x 26.50mm x 52.00mm) | 1.043" L x 1.043" W x 2.047" H (26.50mm x 26.50mm x 52.00mm) |
| Housing Color | Gray | Gray | Gray |
| Features | - | - | - |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | - | IP65 - Dust Tight, Water Resistant |
| Housing Material | Zinc, Die Cast | Zinc, Die Cast | Zinc, Die Cast |
| Housing Finish | Powder Coated | Powder Coated | Powder Coated |
| Operating Temperature | - | - | - |
