1-104910-3
  • Share:

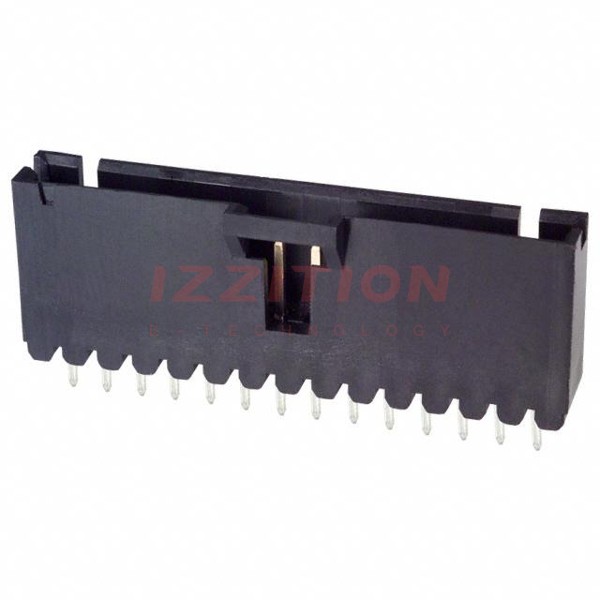

TE Connectivity AMP Connectors 1-104910-3

Manufacturer No:
1-104910-3
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tube
Datasheet:
1-104910-3 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 14POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:14
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:0.230" (5.84mm)
Contact Length - Post:0.130" (3.30mm)
Overall Contact Length:0.545" (13.84mm)
Insulation Height:0.535" (13.60mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Contact Finish - Post:Tin-Lead
Contact Material:Brass
Insulation Material:Thermoplastic
Features:Keying Slot
Operating Temperature:-65°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3A
Voltage Rating:-
0 Remaining View Similar

In Stock

$2.95
94

Please send RFQ , we will respond immediately.
