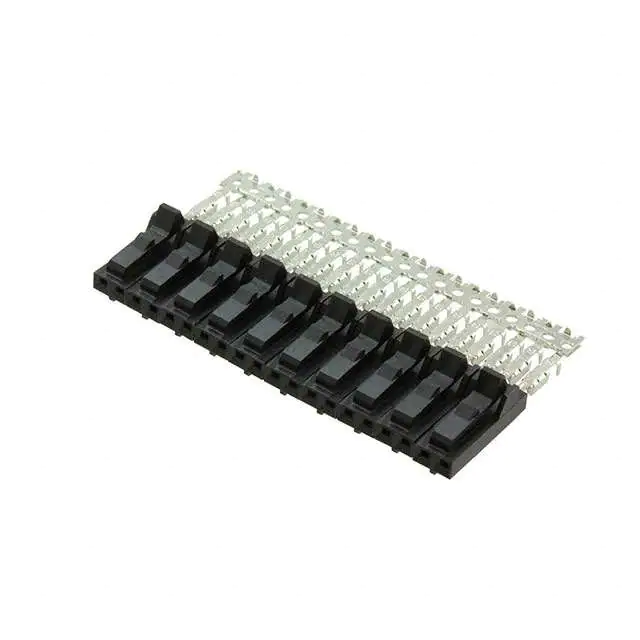

| Part Number | 1-103958-2 | 1-103958-3 | 1-103956-2 | 1-103957-2 | 1-103958-0 | 1-103958-1 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Discontinued at Digi-Key | Active | Active | Active | Active | Active |
| Connector Type | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle |
| Contact Type | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket |
| Number of Positions | 2 | 3 | 2 | 2 | 11 | 12 |
| Pitch | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Rows | 1 | 1 | 1 | 1 | 1 | 1 |
| Row Spacing | - | - | - | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Fastening Type | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock |
| Cable Termination | IDC | IDC | IDC | IDC | IDC | IDC |
| Wire Type | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete | Discrete or Ribbon Cable | Discrete or Ribbon Cable | Discrete or Ribbon Cable |
| Wire Gauge | 22-26 AWG | 22-26 AWG | 22-26 AWG | 22-26 AWG | 22-26 AWG | 22-26 AWG |
| Features | Closed End | Closed End | - | Closed End | Closed End | Closed End |
| Contact Finish | Gold | Gold | Tin | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 100.0µin (2.54µm) | 15.0µin (0.38µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Color | Black | Black | Black | Black | Black | Black |
