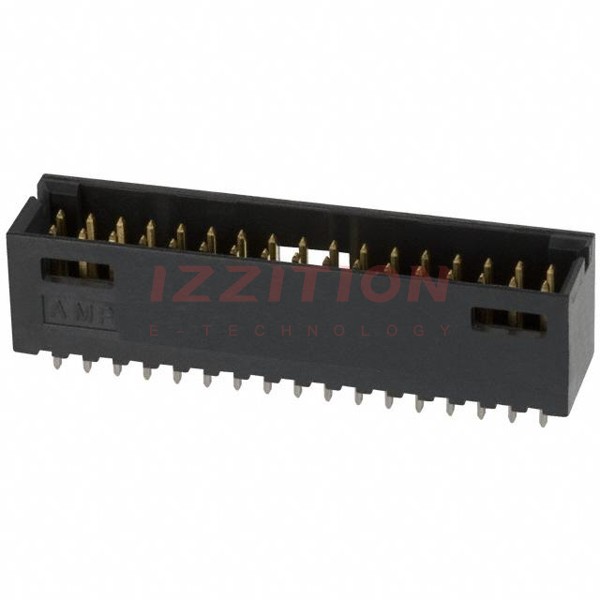

| Part Number | 1-103168-5 | 1-103168-8 | 1-103169-5 | 1-103166-5 | 1-103168-0 | 1-103168-1 | 1-103168-3 | 1-103168-4 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Obsolete | Active | Active | Active | Discontinued at Digi-Key |
| Connector Type | Header | Header | Header | Header | Header | Header | Header | Header |
| Contact Type | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Positions | 34 | 40 | 34 | 34 | 24 | 26 | 30 | 32 |
| Number of Rows | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Positions Loaded | All | All | All | All | All | All | All | All |
| Style | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole, Right Angle | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder |
| Fastening Type | Detent Lock | Detent Lock | Detent Lock | Detent Lock | Detent Lock | Detent Lock | Detent Lock | Detent Lock |
| Contact Length - Mating | 0.318" (8.08mm) | 0.318" (8.08mm) | 0.318" (8.08mm) | 0.318" (8.08mm) | 0.318" (8.08mm) | 0.318" (8.08mm) | 0.318" (8.08mm) | 0.318" (8.08mm) |
| Contact Length - Post | 0.125" (3.18mm) | 0.125" (3.18mm) | 0.125" (3.18mm) | 0.135" (3.43mm) | 0.125" (3.18mm) | 0.125" (3.18mm) | 0.125" (3.18mm) | 0.125" (3.18mm) |
| Overall Contact Length | 0.533" (13.55mm) | 0.533" (13.55mm) | 0.533" (13.55mm) | - | 0.533" (13.55mm) | 0.533" (13.55mm) | 0.533" (13.55mm) | 0.533" (13.55mm) |
| Insulation Height | 0.440" (11.18mm) | 0.440" (11.18mm) | 0.440" (11.18mm) | 0.400" (10.16mm) | 0.440" (11.18mm) | 0.440" (11.18mm) | 0.440" (11.18mm) | 0.440" (11.18mm) |
| Contact Shape | Square | Square | Square | Square | Square | Square | Square | Square |
| Contact Finish - Mating | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead | Tin-Lead |
| Contact Material | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
| Insulation Material | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic |
| Features | - | - | - | - | - | - | - | - |
| Operating Temperature | -65°C ~ 105°C | -65°C ~ 105°C | -65°C ~ 105°C | -65°C ~ 105°C | -65°C ~ 105°C | -65°C ~ 105°C | -65°C ~ 105°C | -65°C ~ 105°C |
| Ingress Protection | - | - | - | - | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Insulation Color | Black | Black | Black | Black | Black | Black | Black | Black |
| Current Rating (Amps) | 3A | 3A | 3A | 3A | 3A | 3A | 3A | 3A |
| Voltage Rating | - | - | - | - | - | - | - | - |
