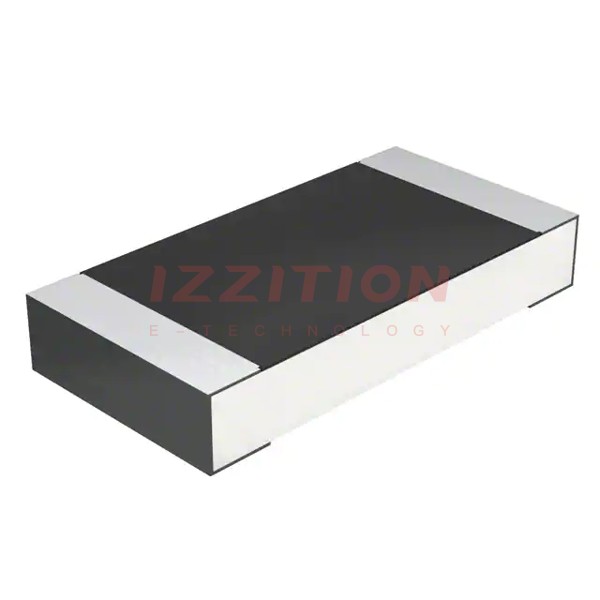

| Part Number | URG3216L-153-L-T05 | URG3216L-103-L-T05 | URG3216L-151-L-T05 | URG3216L-152-L-T05 |
|---|---|---|---|---|
| Manufacturer | Susumu | Susumu | Susumu | Susumu |
| Product Status | Active | Active | Active | Active |
| Resistance | 15 kOhms | 10 kOhms | 150 Ohms | 1.5 kOhms |
| Tolerance | ±0.01% | ±0.01% | ±0.01% | ±0.01% |
| Power (Watts) | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W |
| Composition | Thin Film | Thin Film | Thin Film | Thin Film |
| Features | Anti-Sulfur, Automotive AEC-Q200 | Anti-Sulfur, Automotive AEC-Q200 | Anti-Sulfur, Automotive AEC-Q200 | Anti-Sulfur, Automotive AEC-Q200 |
| Temperature Coefficient | ±2ppm/°C | ±2ppm/°C | ±2ppm/°C | ±2ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) |
| Supplier Device Package | 1206 | 1206 | 1206 | 1206 |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) |
| Number of Terminations | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - |
