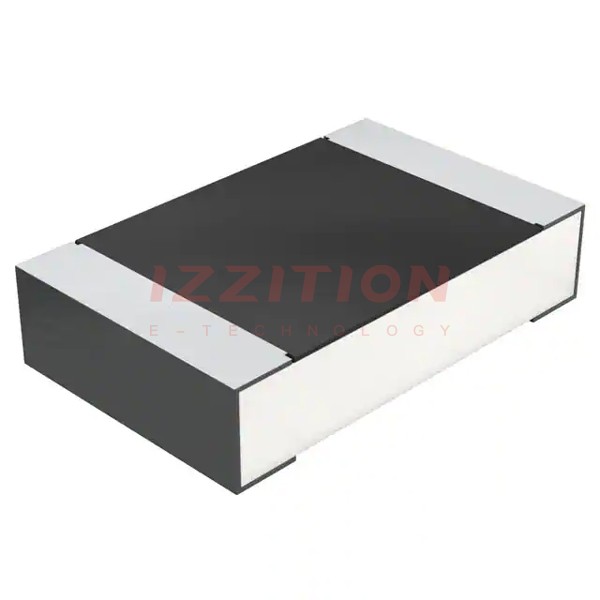

| Part Number | URG2012L-103-L-T05 | URG2012L-153-L-T05 | URG2012L-101-L-T05 | URG2012L-102-L-T05 |
|---|---|---|---|---|
| Manufacturer | Susumu | Susumu | Susumu | Susumu |
| Product Status | Active | Active | Active | Active |
| Resistance | 10 kOhms | 15 kOhms | 100 Ohms | 1 kOhms |
| Tolerance | ±0.01% | ±0.01% | ±0.01% | ±0.01% |
| Power (Watts) | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W |
| Composition | Thin Film | Thin Film | Thin Film | Thin Film |
| Features | Anti-Sulfur, Automotive AEC-Q200 | Anti-Sulfur, Automotive AEC-Q200 | Anti-Sulfur, Automotive AEC-Q200 | Anti-Sulfur, Automotive AEC-Q200 |
| Temperature Coefficient | ±2ppm/°C | ±2ppm/°C | ±2ppm/°C | ±2ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Supplier Device Package | 0805 | 0805 | 0805 | 0805 |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) |
| Number of Terminations | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - |
