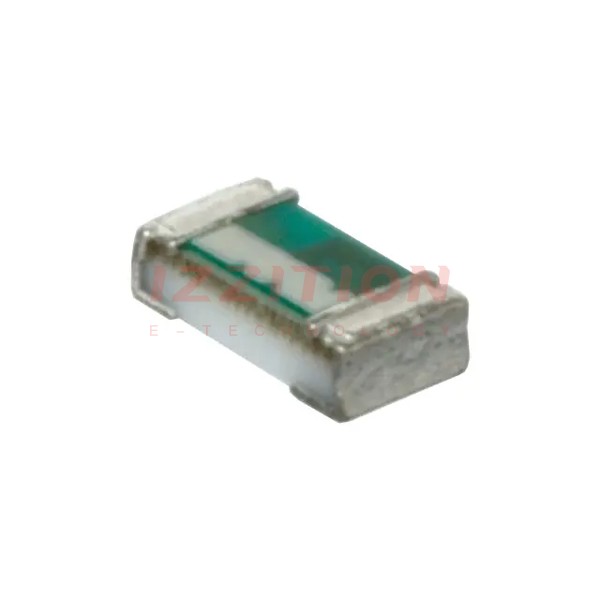

| Part Number | TFL0816-82N | TFL0816-12N | TFL0816-22N |
|---|---|---|---|
| Manufacturer | Susumu | Susumu | Susumu |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Thin Film | Thin Film | Thin Film |
| Material - Core | - | - | - |
| Inductance | 82 nH | 12 nH | 22 nH |
| Tolerance | ±2% | ±2% | ±2% |
| Current Rating (Amps) | 120 mA | 300 mA | 250 mA |
| Current - Saturation (Isat) | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 6Ohm Max | 1Ohm Max | 1.5Ohm Max |
| Q @ Freq | 10 @ 200MHz | 15 @ 300MHz | 15 @ 300MHz |
| Frequency - Self Resonant | 1GHz | 3GHz | 2GHz |
| Ratings | - | - | - |
| Operating Temperature | - | - | - |
| Inductance Frequency - Test | 200 MHz | 200 MHz | 200 MHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Supplier Device Package | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) |
