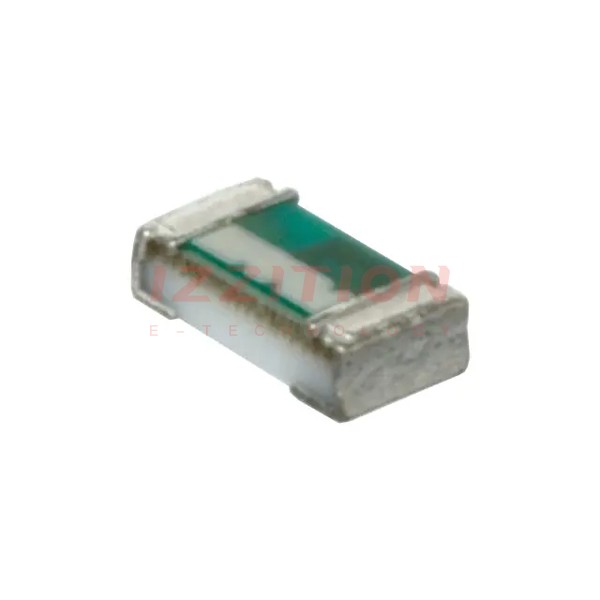

| Part Number | TFL0816-6N8 | TFL0816-1N8 |
|---|---|---|
| Manufacturer | Susumu | Susumu |
| Product Status | Obsolete | Obsolete |
| Type | Thin Film | Thin Film |
| Material - Core | - | - |
| Inductance | 6.8 nH | 1.8 nH |
| Tolerance | ±0.2nH | ±0.2nH |
| Current Rating (Amps) | 400 mA | 800 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 500mOhm Max | 150mOhm Max |
| Q @ Freq | 15 @ 300MHz | 20 @ 300MHz |
| Frequency - Self Resonant | 5GHz | 6GHz |
| Ratings | - | - |
| Operating Temperature | - | - |
| Inductance Frequency - Test | 200 MHz | 200 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Supplier Device Package | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.022" (0.55mm) | 0.022" (0.55mm) |
