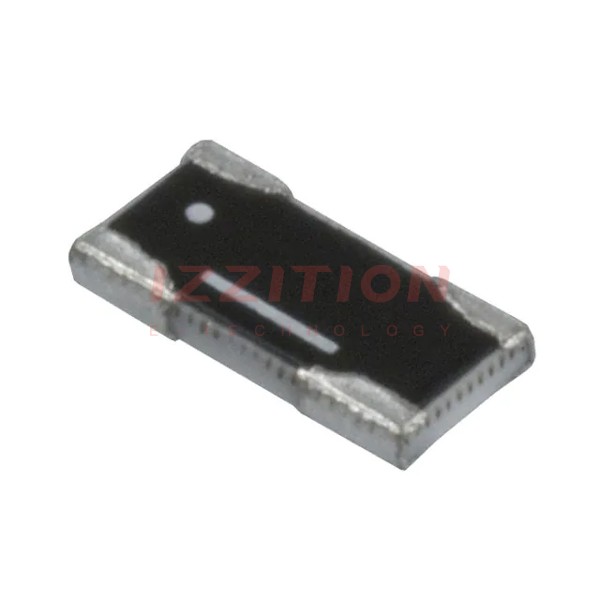

| Part Number | RM3216B-103/303-PBWW10 | RM3216B-103/303-PBVW10 |
|---|---|---|
| Manufacturer | Susumu | Susumu |
| Product Status | Active | Active |
| Circuit Type | Isolated | Isolated |
| Resistance (Ohms) | 10k, 30k | 10k, 30k |
| Tolerance | ±0.1% | ±0.1% |
| Number of Resistors | 2 | 2 |
| Resistor Matching Ratio | - | - |
| Resistor-Ratio-Drift | - | - |
| Number of Pins | 4 | 4 |
| Power Per Element | 83mW | 83mW |
| Temperature Coefficient | ±25ppm/°C | ±25ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C |
| Applications | Automotive AEC-Q200 | Automotive AEC-Q200 |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 1206 (3216 Metric), Long Side Terminals | 1206 (3216 Metric), Long Side Terminals |
| Supplier Device Package | 1206 | 1206 |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.022" (0.55mm) | 0.022" (0.55mm) |
