Please send RFQ , we will respond immediately.

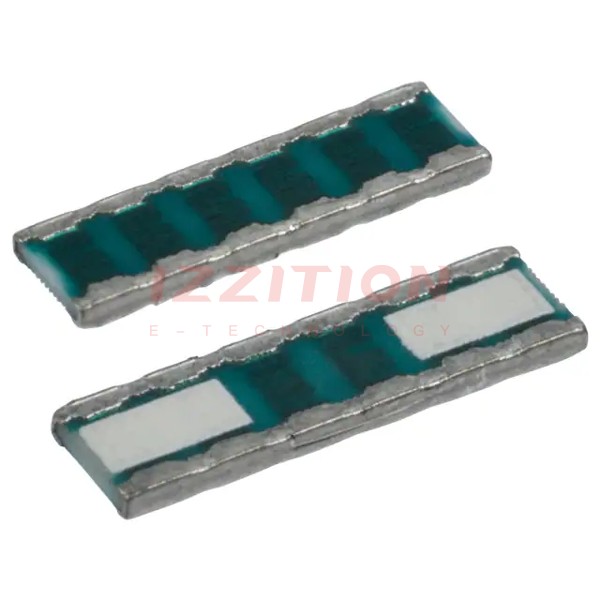

| Part Number | RL7520WT-R050-G | RL7520WT-R010-G | RL7520WT-R020-G | RL7520WT-R050-F |
|---|---|---|---|---|
| Manufacturer | Susumu | Susumu | Susumu | Susumu |
| Product Status | Active | Active | Active | Active |
| Resistance | 50 mOhms | 10 mOhms | 20 mOhms | 50 mOhms |
| Tolerance | ±2% | ±2% | ±2% | ±1% |
| Power (Watts) | 2W | 2W | 2W | 2W |
| Composition | Thin Film | Thin Film | Thin Film | Thin Film |
| Features | Current Sense | Current Sense | Current Sense | Current Sense |
| Temperature Coefficient | 0/ +350ppm/°C | 0/ +350ppm/°C | 0/ +350ppm/°C | 0/ +350ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Package / Case | Wide 3008 (2075 Metric), 0830 | Wide 3008 (2075 Metric), 0830 | Wide 3008 (2075 Metric), 0830 | Wide 3008 (2075 Metric), 0830 |
| Supplier Device Package | 0830 | 0830 | 0830 | 0830 |
| Ratings | - | - | - | - |
| Size / Dimension | 0.079" L x 0.295" W (2.00mm x 7.50mm) | 0.079" L x 0.295" W (2.00mm x 7.50mm) | 0.079" L x 0.295" W (2.00mm x 7.50mm) | 0.079" L x 0.295" W (2.00mm x 7.50mm) |
| Height - Seated (Max) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) |
| Number of Terminations | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - |
