Please send RFQ , we will respond immediately.

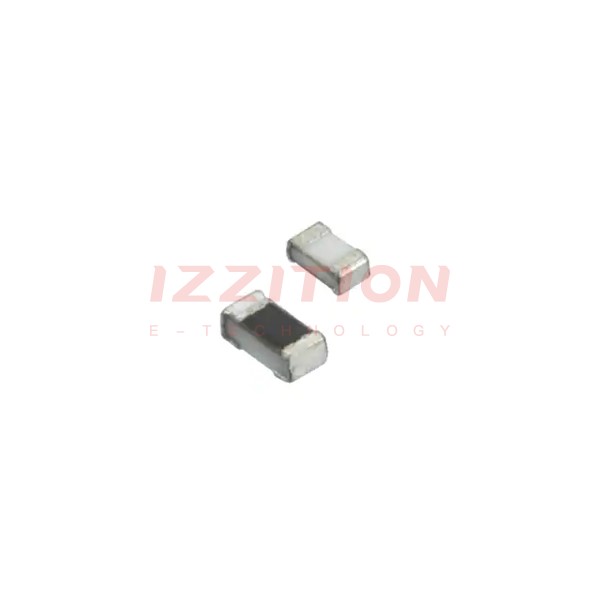

| Part Number | RG1005N-560-W-T5 | RG1005N-561-W-T5 | RG1005N-562-W-T5 | RG1005N-563-W-T5 | RG1005N-5620-W-T5 | RG1005N-5760-W-T5 | RG1005N-5360-W-T5 | RG1005N-560-B-T5 | RG1005N-560-W-T1 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Susumu | Susumu | Susumu | Susumu | Susumu | Susumu | Susumu | Susumu | Susumu |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 56 Ohms | 560 Ohms | 5.6 kOhms | 56 kOhms | 562 Ohms | 576 Ohms | 536 Ohms | 56 Ohms | 56 Ohms |
| Tolerance | ±0.05% | ±0.05% | ±0.05% | ±0.05% | ±0.05% | ±0.05% | ±0.05% | ±0.1% | ±0.05% |
| Power (Watts) | 0.063W, 1/16W | 0.063W, 1/16W | 0.063W, 1/16W | 0.063W, 1/16W | 0.063W, 1/16W | 0.063W, 1/16W | 0.063W, 1/16W | 0.063W, 1/16W | 0.063W, 1/16W |
| Composition | Thin Film | Thin Film | Thin Film | Thin Film | Thin Film | Thin Film | Thin Film | Thin Film | Thin Film |
| Features | Anti-Sulfur, Automotive AEC-Q200 | Anti-Sulfur, Automotive AEC-Q200 | Anti-Sulfur, Automotive AEC-Q200 | Anti-Sulfur, Automotive AEC-Q200 | Anti-Sulfur, Automotive AEC-Q200 | Anti-Sulfur, Automotive AEC-Q200 | Anti-Sulfur, Automotive AEC-Q200 | Anti-Sulfur, Automotive AEC-Q200 | Anti-Sulfur, Automotive AEC-Q200 |
| Temperature Coefficient | ±10ppm/°C | ±10ppm/°C | ±10ppm/°C | ±10ppm/°C | ±10ppm/°C | ±10ppm/°C | ±10ppm/°C | ±10ppm/°C | ±10ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Supplier Device Package | 0402 | 0402 | 0402 | 0402 | 0402 | 0402 | 0402 | 0402 | 0402 |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | 0.016" (0.40mm) | 0.016" (0.40mm) | 0.016" (0.40mm) | 0.016" (0.40mm) | 0.016" (0.40mm) | 0.016" (0.40mm) | 0.016" (0.40mm) | 0.016" (0.40mm) | 0.016" (0.40mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - |
