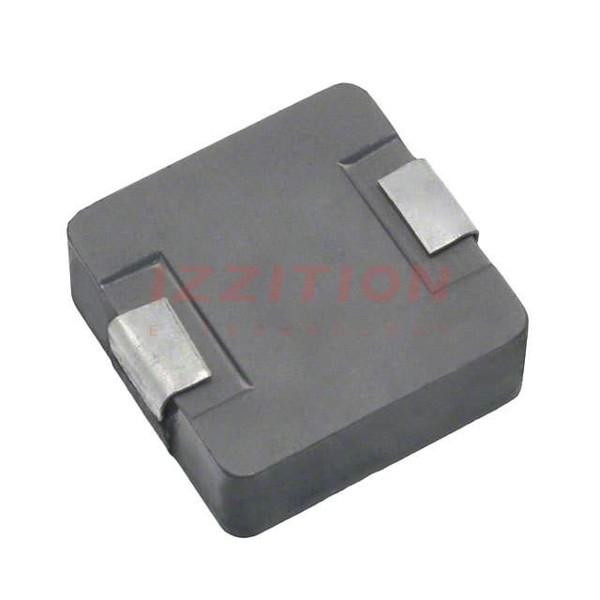

| Part Number | PCMC135T-R56MF | PCMC135T-R36MF | PCMC135T-R50MF |
|---|---|---|---|
| Manufacturer | Susumu | Susumu | Susumu |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | - | - | - |
| Material - Core | - | - | - |
| Inductance | 560 nH | 360 nH | 500 nH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 36 A | 41 A | 36 A |
| Current - Saturation (Isat) | 55A | 75A | 55A |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 1.5mOhm Max | 1.1mOhm Max | 1.5mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | - |
| Ratings | - | - | - |
| Operating Temperature | - | - | - |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.530" L x 0.496" W (13.45mm x 12.60mm) |
| Height - Seated (Max) | 0.189" (4.80mm) | 0.189" (4.80mm) | 0.189" (4.80mm) |
