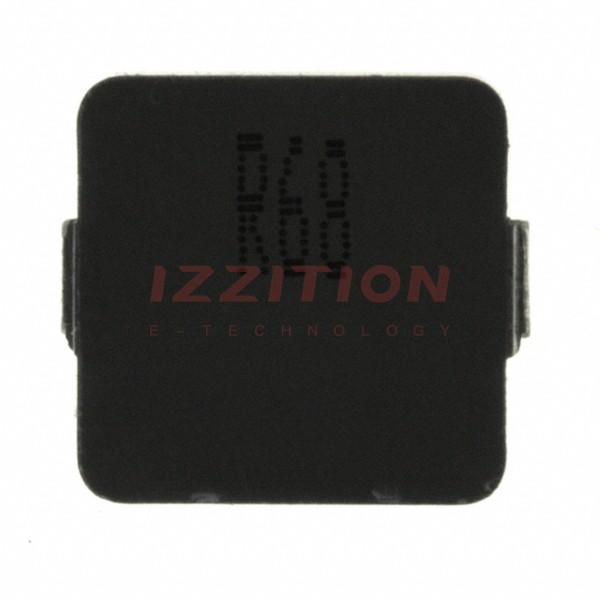

| Part Number | PCMC104T-R68MN | PCMC104T-R88MN |
|---|---|---|
| Manufacturer | Susumu | Susumu |
| Product Status | Obsolete | Obsolete |
| Type | - | - |
| Material - Core | - | - |
| Inductance | 680 nH | 880 nH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 22 A | 20 A |
| Current - Saturation (Isat) | 39A | 38A |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 2.7mOhm Max | 3mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | - | - |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.453" L x 0.394" W (11.50mm x 10.00mm) |
| Height - Seated (Max) | 0.157" (4.00mm) | 0.157" (4.00mm) |
