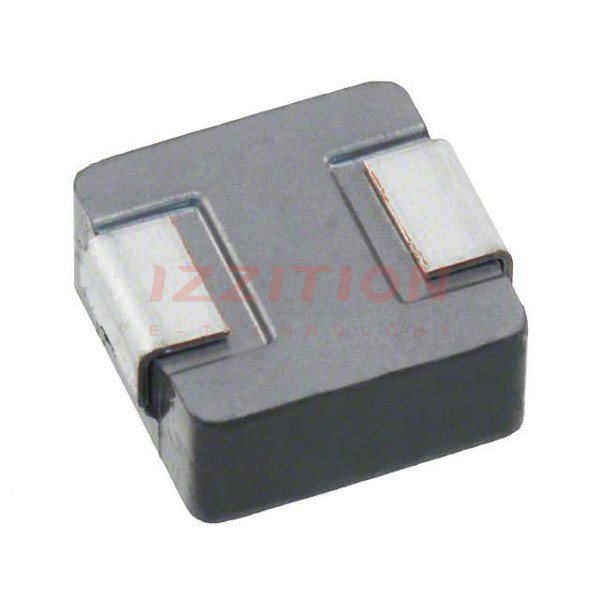

| Part Number | PCMC063T-R68MN | PCMC053T-R68MN |
|---|---|---|
| Manufacturer | Susumu | Susumu |
| Product Status | Obsolete | Obsolete |
| Type | - | - |
| Material - Core | - | - |
| Inductance | 680 nH | 680 nH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 15.5 A | 8.5 A |
| Current - Saturation (Isat) | 25A | 14A |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 5.5mOhm Max | 12mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | - | - |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.205" L x 0.185" W (5.20mm x 4.70mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) |
