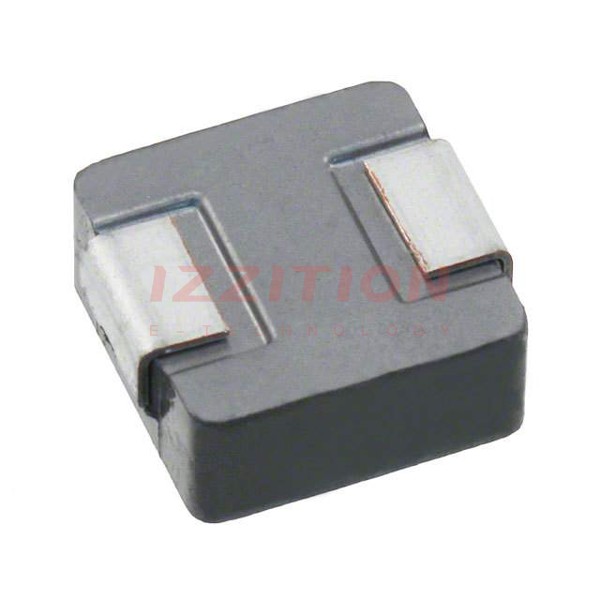

| Part Number | PCMC063T-2R2MN | PCMC053T-2R2MN | PCMC063T-1R2MN |
|---|---|---|---|
| Manufacturer | Susumu | Susumu | Susumu |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | - | - | - |
| Material - Core | - | - | - |
| Inductance | 2.2 µH | 2.2 µH | 1.2 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 8 A | 5.5 A | 10 A |
| Current - Saturation (Isat) | 14A | 9A | 20A |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 20mOhm Max | 35mOhm Max | 12mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | - |
| Ratings | - | - | - |
| Operating Temperature | - | - | - |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.205" L x 0.185" W (5.20mm x 4.70mm) | 0.287" L x 0.260" W (7.30mm x 6.60mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) |
