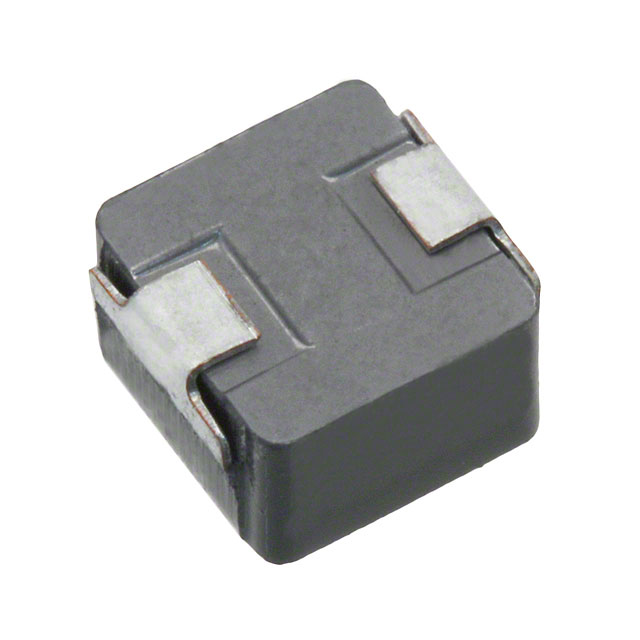

| Part Number | PCMC053T-1R0MN | PCMC063T-1R0MN | PCMC053T-1R2MN | PCMC053T-1R5MN |
|---|---|---|---|---|
| Manufacturer | Susumu | Susumu | Susumu | Susumu |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | - | - | - | - |
| Material - Core | - | - | - | - |
| Inductance | 1 µH | 1 µH | 1.2 µH | 1.5 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 7 A | 11 A | 6.5 A | 6 A |
| Current - Saturation (Isat) | 11A | 22A | 11A | 10A |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 14mOhm Max | 10mOhm Max | 16mOhm Max | 20mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - |
| Ratings | - | - | - | - |
| Operating Temperature | - | - | - | - |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.205" L x 0.185" W (5.20mm x 4.70mm) | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.205" L x 0.185" W (5.20mm x 4.70mm) | 0.205" L x 0.185" W (5.20mm x 4.70mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) |
