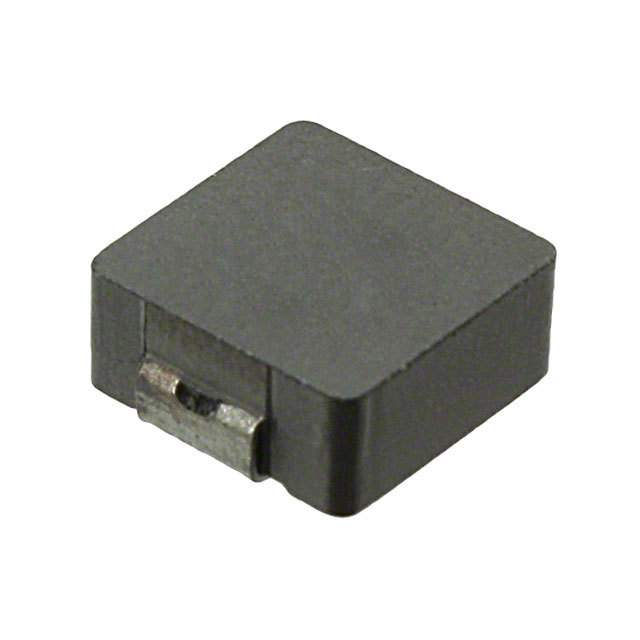

| Part Number | PCMB063T-R22MS | PCMB063T-R82MS |
|---|---|---|
| Manufacturer | Susumu | Susumu |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | - | - |
| Inductance | 220 nH | 820 nH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 23 A | 13 A |
| Current - Saturation (Isat) | 40A | 24A |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 2.8mOhm Max | 8mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | - | - |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.274" L x 0.260" W (6.95mm x 6.60mm) | 0.274" L x 0.260" W (6.95mm x 6.60mm) |
| Height - Seated (Max) | 0.110" (2.80mm) | 0.110" (2.80mm) |
