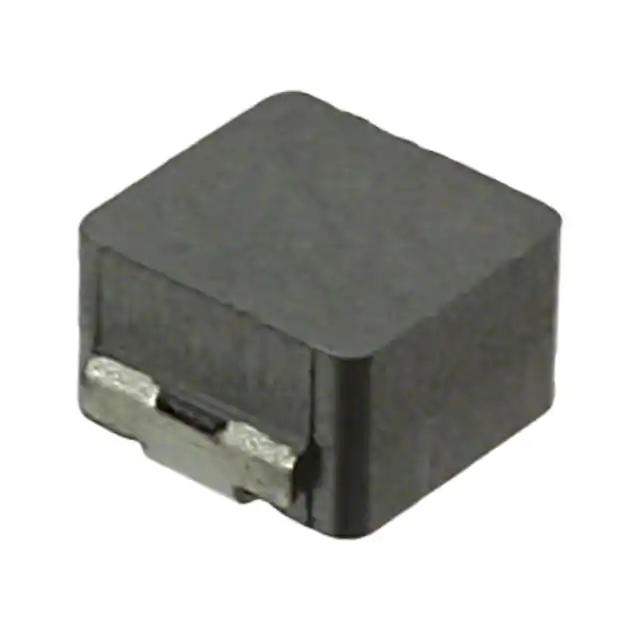

| Part Number | PCMB053T-1R2MS | PCMB053T-2R2MS | PCMB053T-1R5MS | PCMB063T-1R2MS | PCMB053T-1R0MS |
|---|---|---|---|---|---|
| Manufacturer | Susumu | Susumu | Susumu | Susumu | Susumu |
| Product Status | Active | Active | Active | Active | Active |
| Type | - | - | - | - | - |
| Material - Core | - | - | - | - | - |
| Inductance | 1.2 µH | 2.2 µH | 1.5 µH | 1.2 µH | 1 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 6.5 A | 5.5 A | 6 A | 10 A | 7 A |
| Current - Saturation (Isat) | 11A | 9A | 10A | 20A | 11A |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 16mOhm Max | 35mOhm Max | 20mOhm Max | 12mOhm Max | 14mOhm Max |
| Q @ Freq | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - |
| Ratings | - | - | - | - | - |
| Operating Temperature | - | - | - | - | - |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1919 (4848 Metric) | 1919 (4848 Metric) | 1919 (4848 Metric) | Nonstandard | 1919 (4848 Metric) |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.191" L x 0.185" W (4.85mm x 4.70mm) | 0.191" L x 0.185" W (4.85mm x 4.70mm) | 0.191" L x 0.185" W (4.85mm x 4.70mm) | 0.274" L x 0.260" W (6.95mm x 6.60mm) | 0.191" L x 0.185" W (4.85mm x 4.70mm) |
| Height - Seated (Max) | 0.110" (2.80mm) | 0.110" (2.80mm) | 0.110" (2.80mm) | 0.110" (2.80mm) | 0.110" (2.80mm) |
