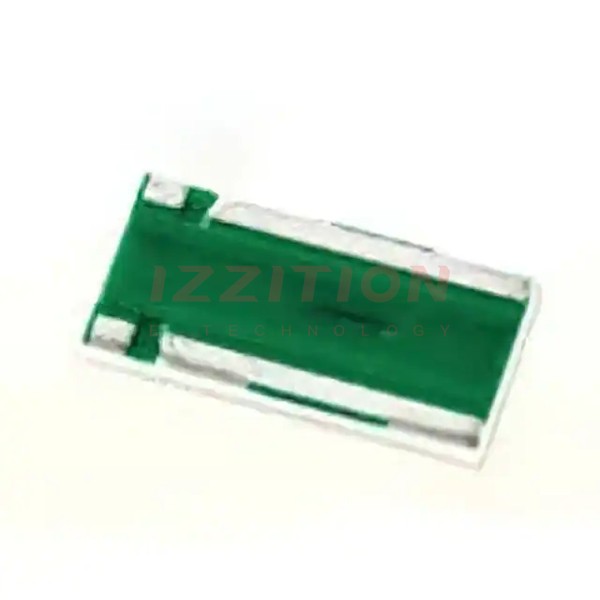

| Part Number | KRL6432T4-M-R500-F-T1 | KRL6432T4-M-R100-F-T1 | KRL6432T4-M-R200-F-T1 |
|---|---|---|---|
| Manufacturer | Susumu | Susumu | Susumu |
| Product Status | Active | Active | Active |
| Resistance | 500 mOhms | 100 mOhms | 200 mOhms |
| Tolerance | ±1% | ±1% | ±1% |
| Power (Watts) | 2W | 2W | 2W |
| Composition | Metal Foil | Metal Foil | Metal Foil |
| Features | Automotive AEC-Q200, Current Sense | Automotive AEC-Q200, Current Sense | Automotive AEC-Q200, Current Sense |
| Temperature Coefficient | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | Wide 2512 (6432 Metric), 1225 | Wide 2512 (6432 Metric), 1225 | Wide 2512 (6432 Metric), 1225 |
| Supplier Device Package | 2512 | 2512 | 2512 |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Size / Dimension | 0.126" L x 0.252" W (3.20mm x 6.40mm) | 0.126" L x 0.252" W (3.20mm x 6.40mm) | 0.126" L x 0.252" W (3.20mm x 6.40mm) |
| Height - Seated (Max) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) |
| Number of Terminations | 4 | 4 | 4 |
| Failure Rate | - | - | - |
