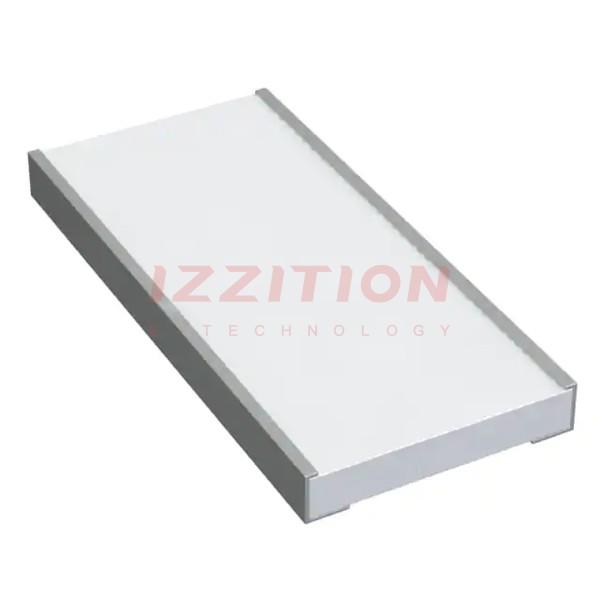

| Part Number | KRL6432E-M-R033-F-T1 | KRL6432E-M-R033-F-T5 | KRL6432E-M-R003-F-T1 |
|---|---|---|---|
| Manufacturer | Susumu | Susumu | Susumu |
| Product Status | Active | Active | Active |
| Resistance | 33 mOhms | 33 mOhms | 3 mOhms |
| Tolerance | ±1% | ±1% | ±1% |
| Power (Watts) | 3W | 3W | 3W |
| Composition | Metal Foil | Metal Foil | Metal Foil |
| Features | Automotive AEC-Q200, Current Sense | Automotive AEC-Q200, Current Sense | Automotive AEC-Q200, Current Sense |
| Temperature Coefficient | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | Wide 2512 (6432 Metric), 1225 | Wide 2512 (6432 Metric), 1225 | Wide 2512 (6432 Metric), 1225 |
| Supplier Device Package | 6432 | 6432 | 6432 |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Size / Dimension | 0.122" L x 0.248" W (3.10mm x 6.30mm) | 0.122" L x 0.248" W (3.10mm x 6.30mm) | 0.122" L x 0.248" W (3.10mm x 6.30mm) |
| Height - Seated (Max) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) |
| Number of Terminations | 2 | 2 | 2 |
| Failure Rate | - | - | - |
