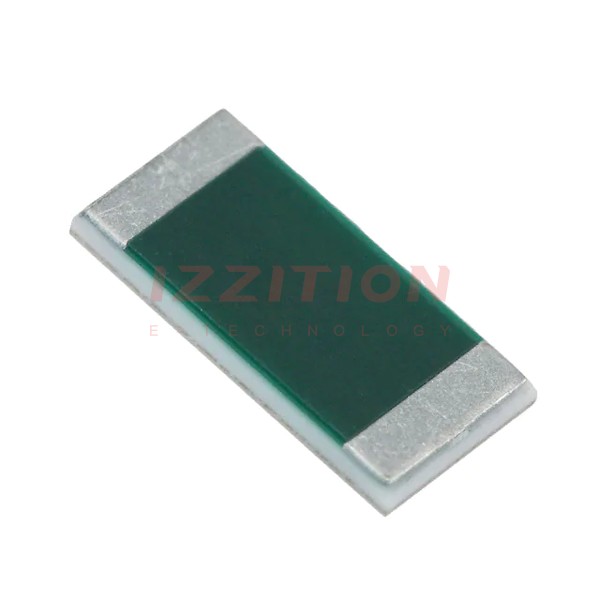

| Part Number | KRL3264-C-R050-F-T1 | KRL3264-C-R056-F-T1 | KRL3264-C-R010-F-T1 |
|---|---|---|---|
| Manufacturer | Susumu | Susumu | Susumu |
| Product Status | Active | Active | Active |
| Resistance | 50 mOhms | 56 mOhms | 10 mOhms |
| Tolerance | ±1% | ±1% | ±1% |
| Power (Watts) | 1W | 1W | 1W |
| Composition | Metal Foil | Metal Foil | Metal Foil |
| Features | Automotive AEC-Q200, Current Sense | Automotive AEC-Q200, Current Sense | Automotive AEC-Q200, Current Sense |
| Temperature Coefficient | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C |
| Operating Temperature | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C |
| Package / Case | 2512 (6432 Metric) | 2512 (6432 Metric) | 2512 (6432 Metric) |
| Supplier Device Package | 3264 | 3264 | 3264 |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Size / Dimension | 0.248" L x 0.122" W (6.30mm x 3.10mm) | 0.248" L x 0.122" W (6.30mm x 3.10mm) | 0.248" L x 0.122" W (6.30mm x 3.10mm) |
| Height - Seated (Max) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) |
| Number of Terminations | 2 | 2 | 2 |
| Failure Rate | - | - | - |
