Please send RFQ , we will respond immediately.

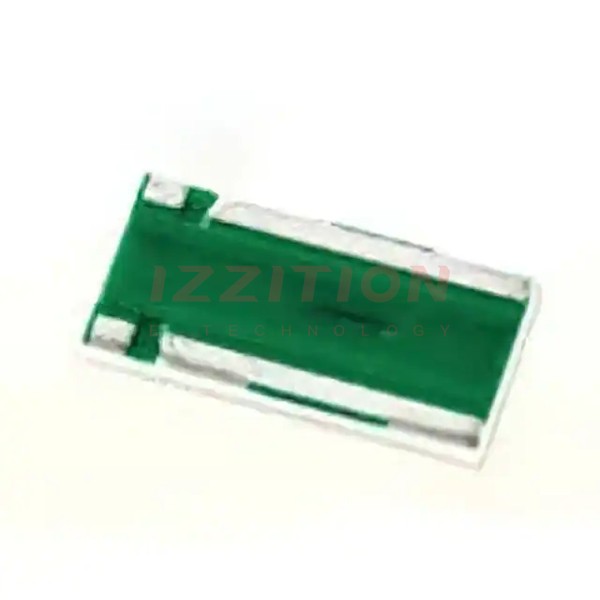

| Part Number | KRL3216T4A-M-R001-G-T5 | KRL3216T4A-M-R002-G-T5 | KRL3216T4A-M-R001-G-T1 |
|---|---|---|---|
| Manufacturer | Susumu | Susumu | Susumu |
| Product Status | Active | Active | Active |
| Resistance | 1 MOhms | 2 MOhms | 1 MOhms |
| Tolerance | ±2% | ±2% | ±2% |
| Power (Watts) | 1W | 1W | 1W |
| Composition | Metal Foil | Metal Foil | Metal Foil |
| Features | Automotive AEC-Q200, Current Sense | Automotive AEC-Q200, Current Sense | Automotive AEC-Q200, Current Sense |
| Temperature Coefficient | ±150ppm/°C | ±100ppm/°C | ±150ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | Wide 1206 (3216 Metric), 0612 | Wide 1206 (3216 Metric), 0612 | Wide 1206 (3216 Metric), 0612 |
| Supplier Device Package | 1206 | 1206 | 1206 |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Size / Dimension | 0.063" L x 0.126" W (1.60mm x 3.20mm) | 0.063" L x 0.126" W (1.60mm x 3.20mm) | 0.063" L x 0.126" W (1.60mm x 3.20mm) |
| Height - Seated (Max) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) |
| Number of Terminations | 4 | 4 | 4 |
| Failure Rate | - | - | - |
