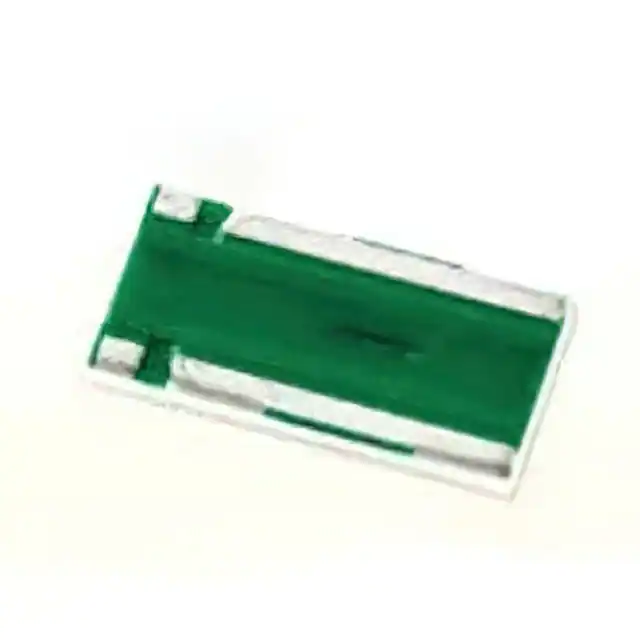

| Part Number | KRL3216T4-M-R007-F-T1 | KRL3216T4A-M-R007-F-T1 | KRL3216T4-M-R008-F-T1 | KRL3216T4-M-R009-F-T1 | KRL3216T4-M-R003-F-T1 | KRL3216T4-M-R004-F-T1 | KRL3216T4-M-R005-F-T1 | KRL3216T4-M-R006-F-T1 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Susumu | Susumu | Susumu | Susumu | Susumu | Susumu | Susumu | Susumu |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 7 mOhms | 7 mOhms | 8 mOhms | 9 mOhms | 3 mOhms | 4 mOhms | 5 mOhms | 6 mOhms |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Power (Watts) | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W |
| Composition | Metal Foil | Metal Foil | Metal Foil | Metal Foil | Metal Foil | Metal Foil | Metal Foil | Metal Foil |
| Features | Automotive AEC-Q200, Current Sense | Automotive AEC-Q200, Current Sense | Automotive AEC-Q200, Current Sense | Automotive AEC-Q200, Current Sense | Automotive AEC-Q200, Current Sense | Automotive AEC-Q200, Current Sense | Automotive AEC-Q200, Current Sense | Automotive AEC-Q200, Current Sense |
| Temperature Coefficient | ±50ppm/°C | ±35ppm/°C | ±50ppm/°C | ±50ppm/°C | ±100ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | Wide 1206 (3216 Metric), 0612 | Wide 1206 (3216 Metric), 0612 | Wide 1206 (3216 Metric), 0612 | Wide 1206 (3216 Metric), 0612 | Wide 1206 (3216 Metric), 0612 | Wide 1206 (3216 Metric), 0612 | Wide 1206 (3216 Metric), 0612 | Wide 1206 (3216 Metric), 0612 |
| Supplier Device Package | 1206 | 1206 | 1206 | 1206 | 1206 | 1206 | 1206 | 1206 |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Size / Dimension | 0.063" L x 0.126" W (1.60mm x 3.20mm) | 0.063" L x 0.126" W (1.60mm x 3.20mm) | 0.063" L x 0.126" W (1.60mm x 3.20mm) | 0.063" L x 0.126" W (1.60mm x 3.20mm) | 0.063" L x 0.126" W (1.60mm x 3.20mm) | 0.063" L x 0.126" W (1.60mm x 3.20mm) | 0.063" L x 0.126" W (1.60mm x 3.20mm) | 0.063" L x 0.126" W (1.60mm x 3.20mm) |
| Height - Seated (Max) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) |
| Number of Terminations | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Failure Rate | - | - | - | - | - | - | - | - |
