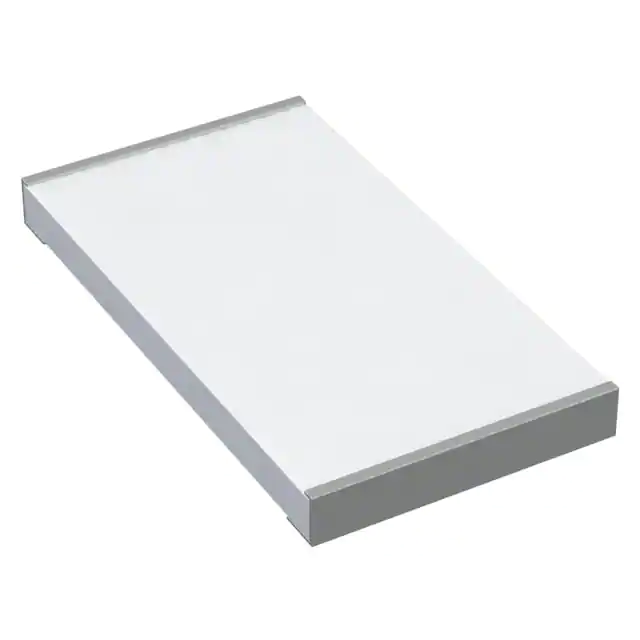

| Part Number | KRL1632E-M-R220-F-T5 | KRL1632E-M-R270-F-T5 | KRL1632E-M-R120-F-T5 |
|---|---|---|---|
| Manufacturer | Susumu | Susumu | Susumu |
| Product Status | Active | Active | Active |
| Resistance | 220 mOhms | 270 mOhms | 120 mOhms |
| Tolerance | ±1% | ±1% | ±1% |
| Power (Watts) | 0.75W, 3/4W | 0.75W, 3/4W | 0.75W, 3/4W |
| Composition | Metal Foil | Metal Foil | Metal Foil |
| Features | Automotive AEC-Q200, Current Sense | Automotive AEC-Q200, Current Sense | Automotive AEC-Q200, Current Sense |
| Temperature Coefficient | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) |
| Supplier Device Package | 1206 | 1206 | 1206 |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) |
| Number of Terminations | 2 | 2 | 2 |
| Failure Rate | - | - | - |
