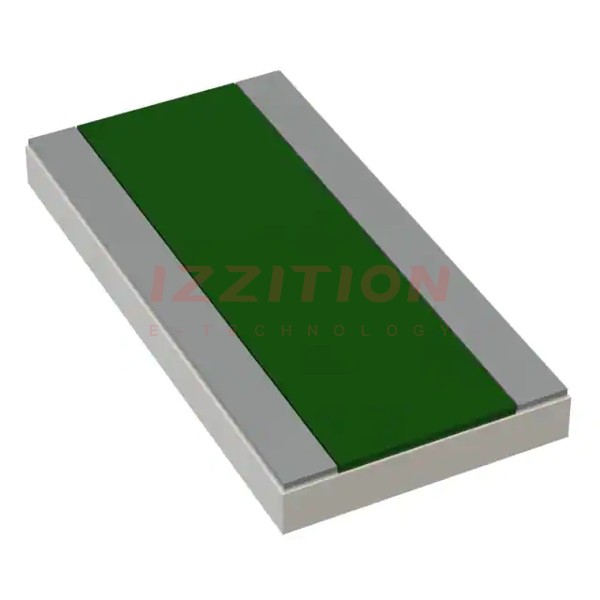

| Part Number | KRL11050-C-R007-F-T1 | KRL11050-C-R008-F-T1 | KRL11050-C-R009-F-T1 | KRL11050-C-R027-F-T1 | KRL11050-C-R047-F-T1 | KRL11050-C-R003-F-T1 | KRL11050-C-R004-F-T1 | KRL11050-C-R005-F-T1 | KRL11050-C-R006-F-T1 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Susumu | Susumu | Susumu | Susumu | Susumu | Susumu | Susumu | Susumu | Susumu |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 7 mOhms | 8 mOhms | 9 mOhms | 27 mOhms | 47 mOhms | 3 mOhms | 4 mOhms | 5 mOhms | 6 mOhms |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Power (Watts) | 5W | 5W | 5W | 5W | 5W | 5W | 5W | 5W | 5W |
| Composition | Metal Foil | Metal Foil | Metal Foil | Metal Foil | Metal Foil | Metal Foil | Metal Foil | Metal Foil | Metal Foil |
| Features | Automotive AEC-Q200, Current Sense | Automotive AEC-Q200, Current Sense | Automotive AEC-Q200, Current Sense | Automotive AEC-Q200, Current Sense | Automotive AEC-Q200, Current Sense | Automotive AEC-Q200, Current Sense | Automotive AEC-Q200, Current Sense | Automotive AEC-Q200, Current Sense | Automotive AEC-Q200, Current Sense |
| Temperature Coefficient | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C |
| Operating Temperature | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C |
| Package / Case | Wide 4320 (11050 Metric), 2043 | Wide 4320 (11050 Metric), 2043 | Wide 4320 (11050 Metric), 2043 | Wide 4320 (11050 Metric), 2043 | Wide 4320 (11050 Metric), 2043 | Wide 4320 (11050 Metric), 2043 | Wide 4320 (11050 Metric), 2043 | Wide 4320 (11050 Metric), 2043 | Wide 4320 (11050 Metric), 2043 |
| Supplier Device Package | 11050 | 11050 | 11050 | 11050 | 11050 | 11050 | 11050 | 11050 | 11050 |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Size / Dimension | 0.197" L x 0.433" W (5.00mm x 11.00mm) | 0.197" L x 0.433" W (5.00mm x 11.00mm) | 0.197" L x 0.433" W (5.00mm x 11.00mm) | 0.197" L x 0.433" W (5.00mm x 11.00mm) | 0.197" L x 0.433" W (5.00mm x 11.00mm) | 0.197" L x 0.433" W (5.00mm x 11.00mm) | 0.197" L x 0.433" W (5.00mm x 11.00mm) | 0.197" L x 0.433" W (5.00mm x 11.00mm) | 0.197" L x 0.433" W (5.00mm x 11.00mm) |
| Height - Seated (Max) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - |
