Please send RFQ , we will respond immediately.

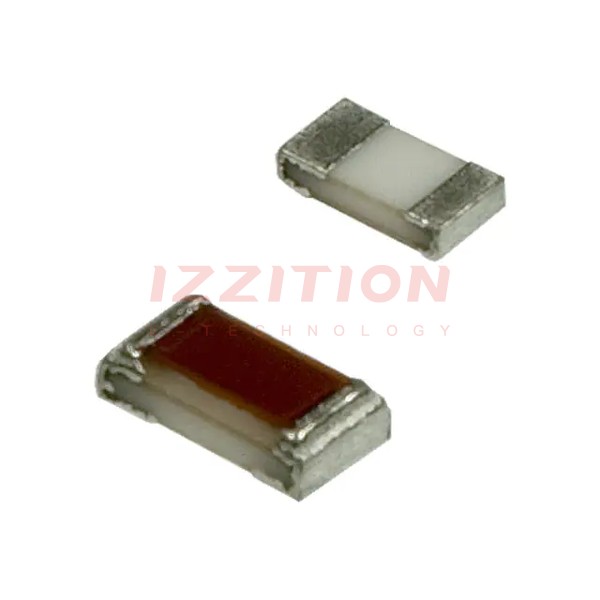

| Part Number | HTC1005-1E-R20-T35-L5 | HTC1005-1E-R25-T35-L5 | HTC1005-1E-R30-T35-L5 | HTC1005-1E-R40-T35-L5 | HTC1005-1E-R50-T35-L5 | HTC1005-1E-R60-T35-L5 | HTC1005-1E-R70-T35-L5 | HTC1005-1E-R10-T35-L5 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Susumu | Susumu | Susumu | Susumu | Susumu | Susumu | Susumu | Susumu |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 0.2 pF | 0.25 pF | 0.3 pF | 0.4 pF | 0.5 pF | 0.6 pF | 0.7 pF | 0.1 pF |
| Tolerance | ±0.035pF | ±0.035pF | ±0.035pF | ±0.035pF | ±0.035pF | ±0.035pF | ±0.035pF | ±0.035pF |
| Voltage - Rated | 25 V | 25 V | 25 V | 25 V | 25 V | 25 V | 25 V | 25 V |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Features | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | 0.013" (0.33mm) | 0.013" (0.33mm) | 0.013" (0.33mm) | 0.013" (0.33mm) | 0.013" (0.33mm) | 0.013" (0.33mm) | 0.013" (0.33mm) | 0.013" (0.33mm) |
