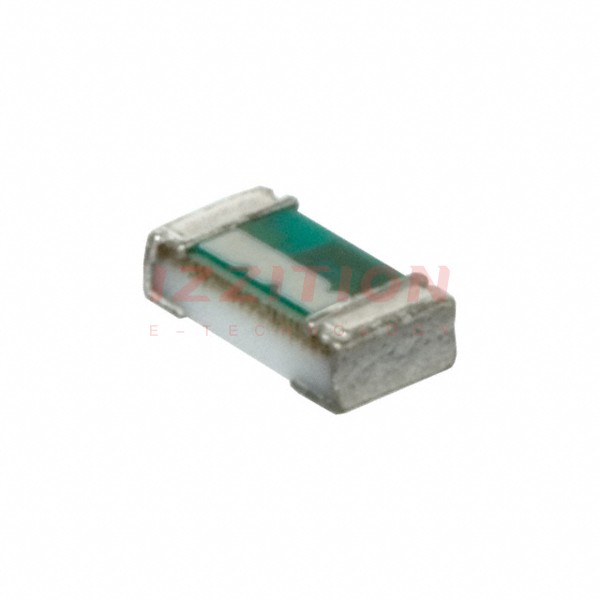

| Part Number | HPL1005-6N8 | HPL1005-1N8 | HPL1005-6N2 |
|---|---|---|---|
| Manufacturer | Susumu | Susumu | Susumu |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Thin Film | Thin Film | Thin Film |
| Material - Core | - | - | - |
| Inductance | 6.8 nH | 1.8 nH | 6.2 nH |
| Tolerance | ±0.2nH | ±0.2nH | ±0.2nH |
| Current Rating (Amps) | 430 mA | 1 A | 440 mA |
| Current - Saturation (Isat) | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 800mOhm Max | 140mOhm Max | 800mOhm Max |
| Q @ Freq | 10 @ 300MHz | 15 @ 300MHz | 10 @ 300MHz |
| Frequency - Self Resonant | 4.5GHz | 7GHz | 4.5GHz |
| Ratings | - | - | - |
| Operating Temperature | - | - | - |
| Inductance Frequency - Test | 300 MHz | 300 MHz | 300 MHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Supplier Device Package | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | 0.013" (0.33mm) | 0.013" (0.33mm) | 0.013" (0.33mm) |
