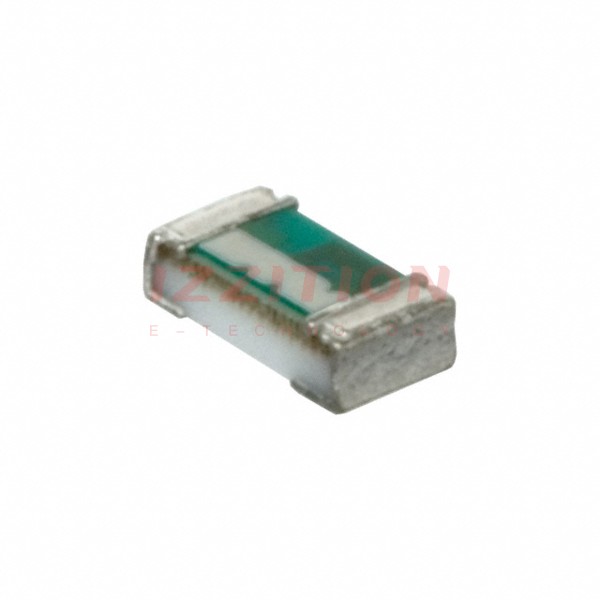

| Part Number | HPL1005-5N1 | HPL1005-5N6 | HPL1005-1N1 |
|---|---|---|---|
| Manufacturer | Susumu | Susumu | Susumu |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Thin Film | Thin Film | Thin Film |
| Material - Core | - | - | - |
| Inductance | 5.1 nH | 5.6 nH | 1.1 nH |
| Tolerance | ±0.2nH | ±0.2nH | ±0.2nH |
| Current Rating (Amps) | 460 mA | 450 mA | 1.5 A |
| Current - Saturation (Isat) | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 68.8mOhm Max | 700mOhm Max | 50mOhm Max |
| Q @ Freq | 10 @ 300MHz | 10 @ 300MHz | 15 @ 300MHz |
| Frequency - Self Resonant | 5.5GHz | 5.5GHz | 7GHz |
| Ratings | - | - | - |
| Operating Temperature | - | - | - |
| Inductance Frequency - Test | 300 MHz | 300 MHz | 300 MHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Supplier Device Package | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | 0.013" (0.33mm) | 0.013" (0.33mm) | 0.013" (0.33mm) |
