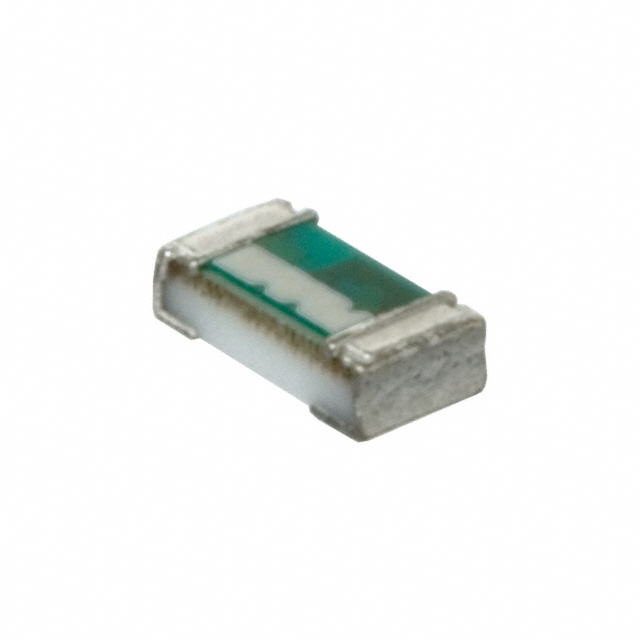

| Part Number | HPL1005-4N3 | HPL1005-4N7 | HPL1005-1N3 | HPL1005-3N3 |
|---|---|---|---|---|
| Manufacturer | Susumu | Susumu | Susumu | Susumu |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Thin Film | Thin Film | Thin Film | Thin Film |
| Material - Core | - | - | - | - |
| Inductance | 4.3 nH | 4.7 nH | 1.3 nH | 3.3 nH |
| Tolerance | ±0.2nH | ±0.2nH | ±0.2nH | ±0.2nH |
| Current Rating (Amps) | 550 mA | 500 mA | 1.25 A | 700 mA |
| Current - Saturation (Isat) | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 460mOhm Max | 500mOhm Max | 100mOhm Max | 250mOhm Max |
| Q @ Freq | 13 @ 300MHz | 13 @ 300MHz | 15 @ 300MHz | 13 @ 300MHz |
| Frequency - Self Resonant | 6GHz | 6GHz | 7GHz | 7GHz |
| Ratings | - | - | - | - |
| Operating Temperature | - | - | - | - |
| Inductance Frequency - Test | 300 MHz | 300 MHz | 300 MHz | 300 MHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Supplier Device Package | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | 0.013" (0.33mm) | 0.013" (0.33mm) | 0.013" (0.33mm) | 0.013" (0.33mm) |
