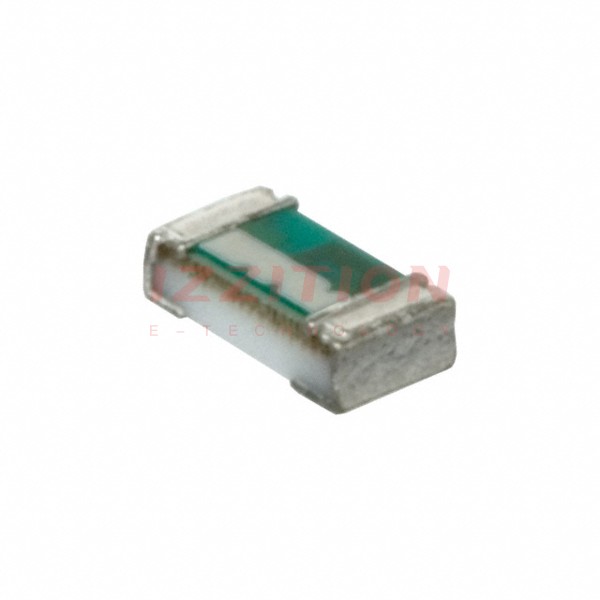

| Part Number | HPL1005-12N | HPL1005-15N | HPL1005-13N | HPL1005-10N | HPL1005-11N |
|---|---|---|---|---|---|
| Manufacturer | Susumu | Susumu | Susumu | Susumu | Susumu |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Thin Film | Thin Film | Thin Film | Thin Film | Thin Film |
| Material - Core | - | - | - | - | - |
| Inductance | 12 nH | 15 nH | 13 nH | 10 nH | 11 nH |
| Tolerance | ±2% | ±2% | ±2% | ±2% | ±2% |
| Current Rating (Amps) | 270 mA | 240 mA | 260 mA | 300 mA | 280 mA |
| Current - Saturation (Isat) | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 1.65Ohm Max | 2.25Ohm Max | 2.2Ohm Max | 1.4Ohm Max | 1.6Ohm Max |
| Q @ Freq | 10 @ 300MHz | 10 @ 300MHz | 10 @ 300MHz | 10 @ 300MHz | 10 @ 300MHz |
| Frequency - Self Resonant | 3.5GHz | 3.5GHz | 3.5GHz | 3.5GHz | 3.5GHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | - | - | - | - | - |
| Inductance Frequency - Test | 300 MHz | 300 MHz | 300 MHz | 300 MHz | 300 MHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Supplier Device Package | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | 0.013" (0.33mm) | 0.013" (0.33mm) | 0.013" (0.33mm) | 0.013" (0.33mm) | 0.013" (0.33mm) |
