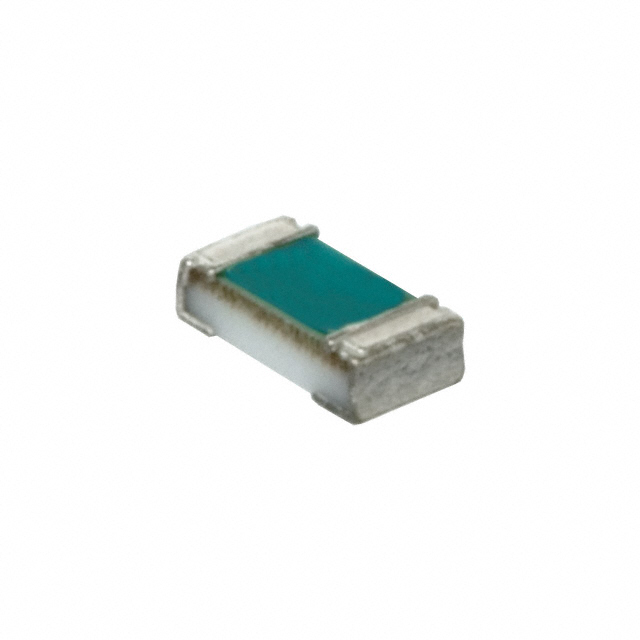

| Part Number | HPL0603-2N2 | HPL0603-2N7 | HPL0603-6N2 | HPL0603-8N2 | HPL0603-1N2 |
|---|---|---|---|---|---|
| Manufacturer | Susumu | Susumu | Susumu | Susumu | Susumu |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Thin Film | Thin Film | Thin Film | Thin Film | Thin Film |
| Material - Core | - | - | - | - | - |
| Inductance | 2.2 nH | 2.7 nH | 6.2 nH | 8.2 nH | 1.2 nH |
| Tolerance | ±0.2nH | ±0.2nH | ±5% | ±5% | ±0.2nH |
| Current Rating (Amps) | 350 mA | 340 mA | 220 mA | 170 mA | 460 mA |
| Current - Saturation (Isat) | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 500mOhm Max | 540mOhm Max | 1Ohm Max | 1.8Ohm Max | 300mOhm Max |
| Q @ Freq | 10 @ 300MHz | 10 @ 300MHz | 10 @ 300MHz | 10 @ 300MHz | 10 @ 300MHz |
| Frequency - Self Resonant | 10GHz | 7GHz | 6GHz | 5GHz | 10GHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | - | - | - | - | - |
| Inductance Frequency - Test | 500 MHz | 500 MHz | 500 MHz | 500 MHz | 500 MHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) |
| Supplier Device Package | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) |
| Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Height - Seated (Max) | 0.013" (0.33mm) | 0.013" (0.33mm) | 0.013" (0.33mm) | 0.013" (0.33mm) | 0.013" (0.33mm) |
