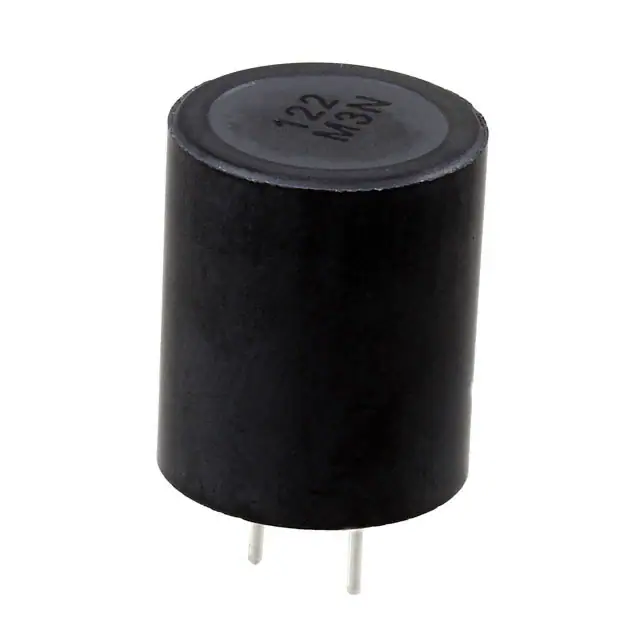

| Part Number | RCP1317NP-331L | RCP1317NP-332L | RCP1317NP-391L |
|---|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active | Active |
| Type | - | - | - |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 330 µH | 3.3 mH | 390 µH |
| Tolerance | ±15% | ±15% | ±15% |
| Current Rating (Amps) | 1.5 A | 450 mA | 1.3 A |
| Current - Saturation (Isat) | 1.6A | 510mA | 1.45A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 360mOhm Max | 3.31Ohm Max | 440mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | - |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.531" Dia (13.50mm) | 0.531" Dia (13.50mm) | 0.531" Dia (13.50mm) |
| Height - Seated (Max) | 0.689" (17.50mm) | 0.689" (17.50mm) | 0.689" (17.50mm) |
