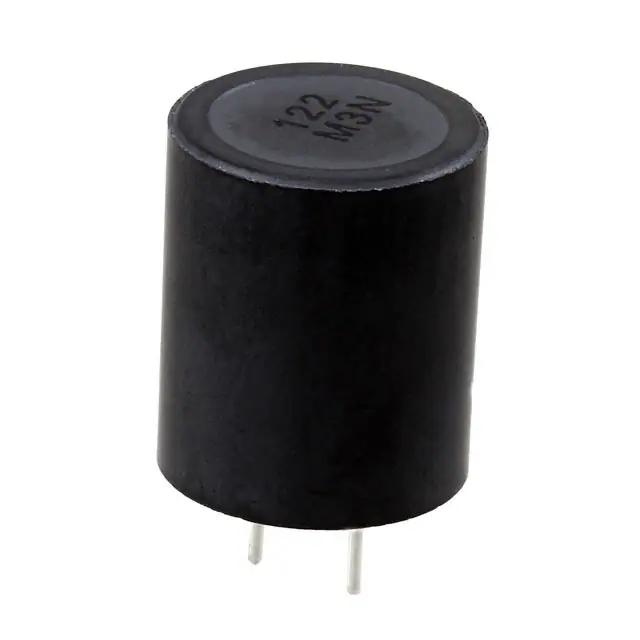

| Part Number | RCP1317NP-121L | RCP1317NP-122L | RCP1317NP-151L | RCP1317NP-181L | RCP1317NP-221L | RCP1317NP-821L |
|---|---|---|---|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | - | - | - | - | - | - |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 120 µH | 1.2 mH | 150 µH | 180 µH | 220 µH | 820 µH |
| Tolerance | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% |
| Current Rating (Amps) | 2.2 A | 740 mA | 1.9 A | 1.8 A | 1.6 A | 850 mA |
| Current - Saturation (Isat) | 2.6A | 800mA | 2.4A | 2.2A | 1.9A | 1.02A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 139mOhm Max | 1.28Ohm Max | 195mOhm Max | 213mOhm Max | 278mOhm Max | 950mOhm Max |
| Q @ Freq | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.531" Dia (13.50mm) | 0.531" Dia (13.50mm) | 0.531" Dia (13.50mm) | 0.531" Dia (13.50mm) | 0.531" Dia (13.50mm) | 0.531" Dia (13.50mm) |
| Height - Seated (Max) | 0.689" (17.50mm) | 0.689" (17.50mm) | 0.689" (17.50mm) | 0.689" (17.50mm) | 0.689" (17.50mm) | 0.689" (17.50mm) |
