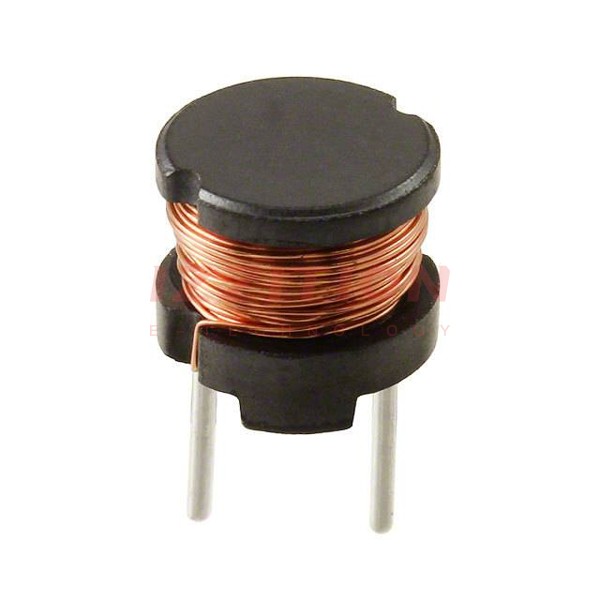

| Part Number | RCH875NP-102K | RCH895NP-102K |
|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 1 mH | 1 mH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 180 mA | 220 mA |
| Current - Saturation (Isat) | 270mA | 300mA |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 2.94Ohm Max | 1.84Ohm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 100°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz |
| Features | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder (Open) | Radial, Vertical Cylinder (Open) |
| Supplier Device Package | - | - |
| Size / Dimension | 0.307" Dia (7.80mm) | 0.307" Dia (7.80mm) |
| Height - Seated (Max) | 0.295" (7.50mm) | 0.374" (9.50mm) |
