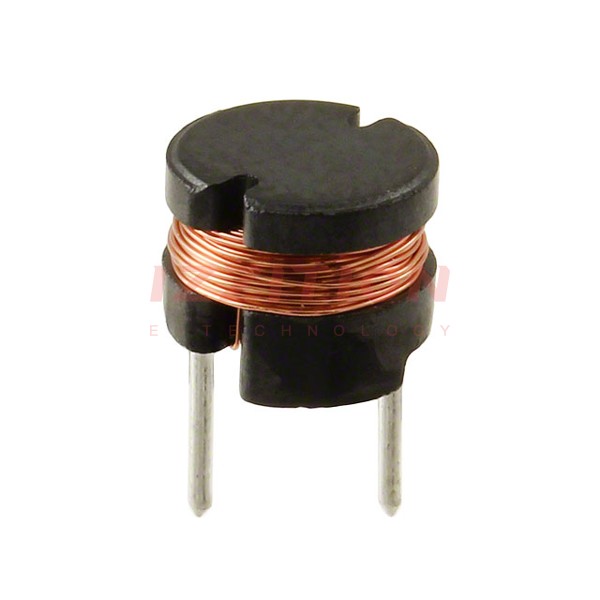

| Part Number | RCH654NP-471K | RCH654NP-470K |
|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 470 µH | 47 µH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 200 mA | 620 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 2.92Ohm Max | 340mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 1 kHz | 2.52 MHz |
| Features | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder (Open) | Radial, Vertical Cylinder (Open) |
| Supplier Device Package | - | - |
| Size / Dimension | 0.236" Dia (6.00mm) | 0.236" Dia (6.00mm) |
| Height - Seated (Max) | 0.197" (5.00mm) | 0.197" (5.00mm) |
