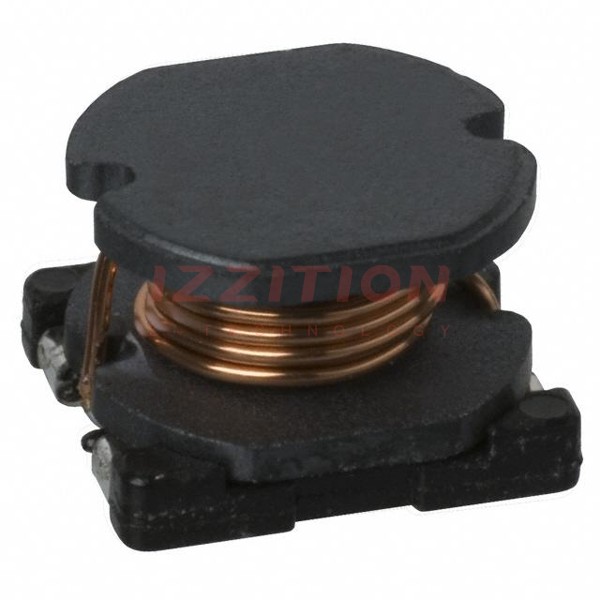

| Part Number | CR75-1R5MC | CR75-1R8MC |
|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 1.5 µH | 1.8 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 5.5 A | 4.5 A |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 17mOhm Max | 19.5mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 45.6MHz | 36.5MHz |
| Ratings | - | - |
| Operating Temperature | -30°C ~ 100°C | -30°C ~ 100°C |
| Inductance Frequency - Test | 7.96 MHz | 7.96 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.307" L x 0.276" W (7.80mm x 7.00mm) |
| Height - Seated (Max) | 0.217" (5.50mm) | 0.217" (5.50mm) |
