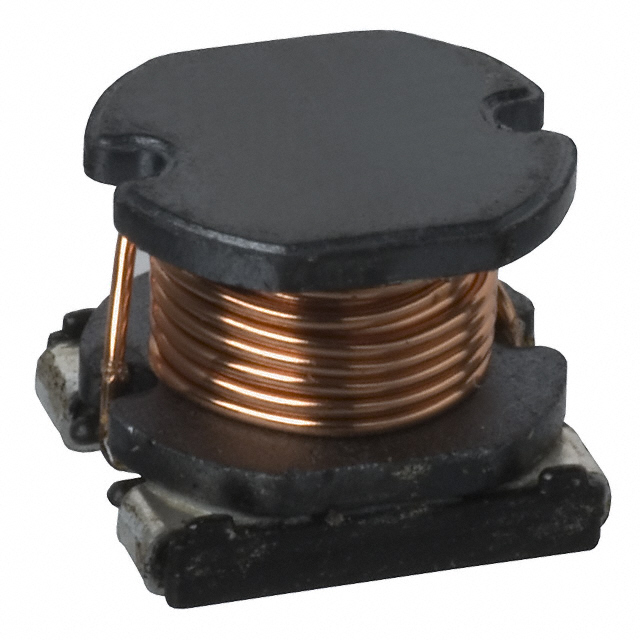

| Part Number | CR54-180MC | CR54-100MC | CR54-120MC | CR54-150MC |
|---|---|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 18 µH | 10 µH | 12 µH | 15 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 1.23 A | 1.44 A | 1.4 A | 1.3 A |
| Current - Saturation (Isat) | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 150mOhm Max | 100mOhm Max | 120mOhm Max | 140mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | 23.3MHz | 30.6MHz | 27.7MHz | 25.9MHz |
| Ratings | - | - | - | - |
| Operating Temperature | -30°C ~ 100°C | -30°C ~ 100°C | -30°C ~ 100°C | -30°C ~ 100°C |
| Inductance Frequency - Test | 2.52 MHz | 2.52 MHz | 2.52 MHz | 2.52 MHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.228" L x 0.209" W (5.80mm x 5.30mm) | 0.228" L x 0.209" W (5.80mm x 5.30mm) | 0.228" L x 0.209" W (5.80mm x 5.30mm) | 0.228" L x 0.209" W (5.80mm x 5.30mm) |
| Height - Seated (Max) | 0.191" (4.85mm) | 0.191" (4.85mm) | 0.191" (4.85mm) | 0.191" (4.85mm) |
