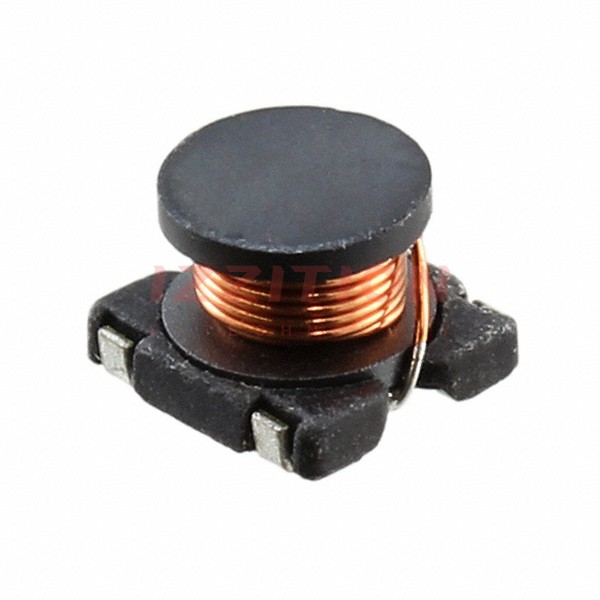

| Part Number | CR32NP-3R3MC | CR32NP-3R9MC |
|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 3.3 µH | 3.9 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 1.18 A | 1.15 A |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 137mOhm Max | 143mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 100°C |
| Inductance Frequency - Test | 7.96 MHz | 7.96 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.150" L x 0.138" W (3.80mm x 3.50mm) | 0.150" L x 0.138" W (3.80mm x 3.50mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) |
