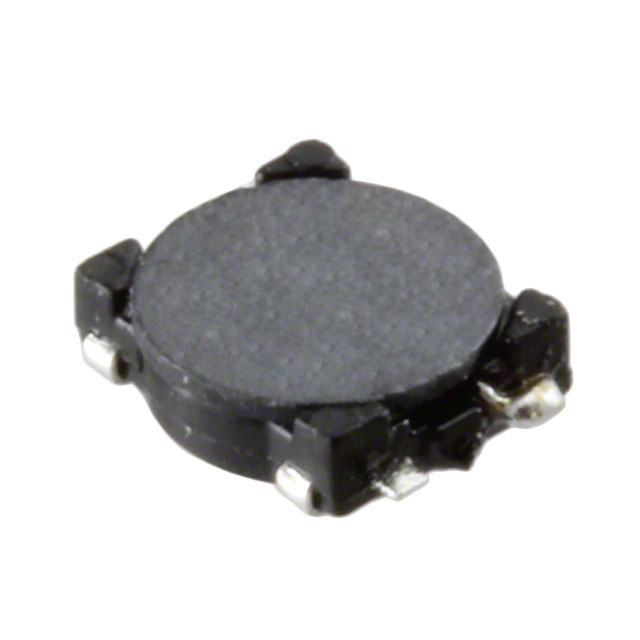

| Part Number | CMD4D13NP-6R8MC | CMD5D13NP-6R8MC |
|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | - | - |
| Inductance | 6.8 µH | 6.8 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 650 mA | 900 mA |
| Current - Saturation (Isat) | 810mA | 1.4A |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 276mOhm Max | 144mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | - | - |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.169" L x 0.161" W (4.30mm x 4.10mm) | 0.236" L x 0.205" W (6.00mm x 5.20mm) |
| Height - Seated (Max) | 0.057" (1.45mm) | 0.059" (1.50mm) |
