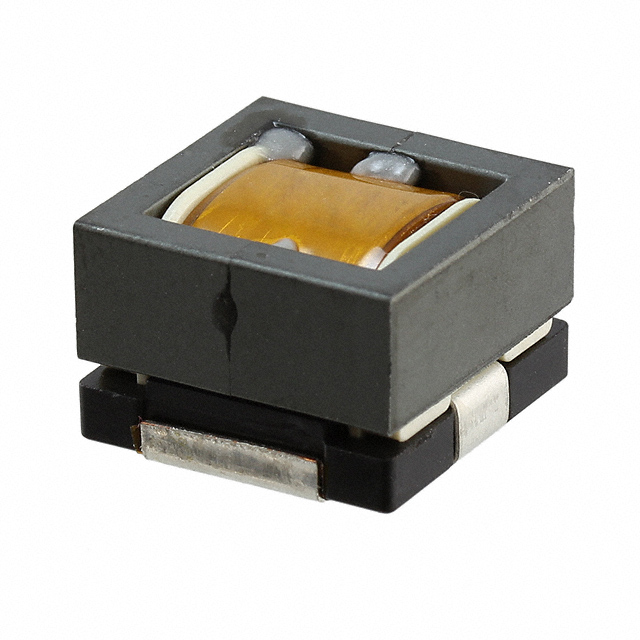

| Part Number | CEPH149NP-1R0MC | CEPH149NP-1R6MC |
|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Obsolete | Obsolete |
| Type | - | - |
| Material - Core | Ferrite | Ferrite |
| Inductance | 1 µH | 1.6 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 20 A | 15.5 A |
| Current - Saturation (Isat) | - | - |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 1.2mOhm Max | 1.5mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 100°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.575" L x 0.575" W (14.60mm x 14.60mm) | 0.575" L x 0.575" W (14.60mm x 14.60mm) |
| Height - Seated (Max) | 0.394" (10.00mm) | 0.394" (10.00mm) |
