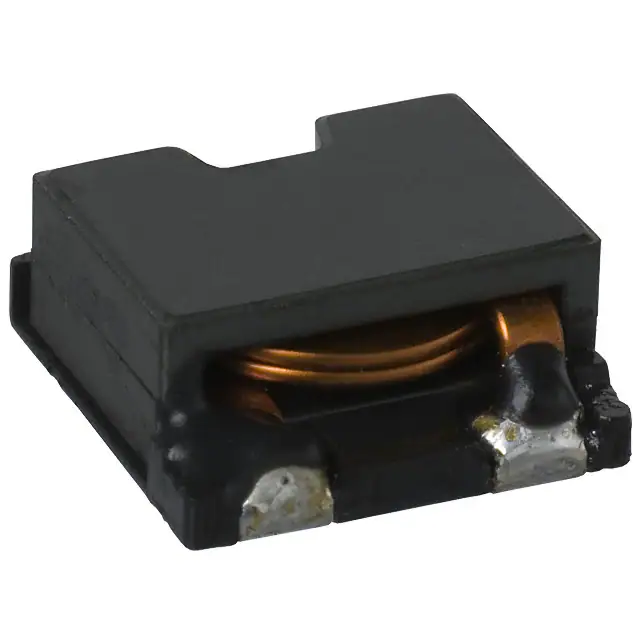

| Part Number | CEP125-0R3NC-UD | CEP125-0R8NC-UD |
|---|---|---|
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. |
| Product Status | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 350 nH | 800 nH |
| Tolerance | ±30% | ±30% |
| Current Rating (Amps) | 18.5 A | 16.5 A |
| Current - Saturation (Isat) | 35A | 25.7A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 1.5mOhm Max | 2.5mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height - Seated (Max) | 0.220" (5.60mm) | 0.220" (5.60mm) |
